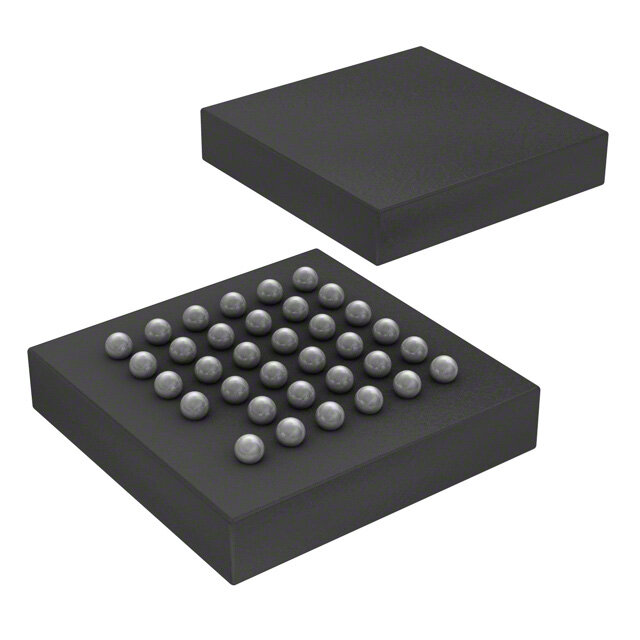

ATSAMD21E16C-UUT
RoHS
/
Package 35-XFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 64KB FLASH 35WLCSP
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
Inventory: 398
Minimum: 1
-
+
Technical Details
Technical
RAM Size 8K x 8
Voltage - Supply (Vcc/Vdd) 1.62V~3.63V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M0+
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Clock Frequency 32MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 64KB 64K x 8
Connectivity I2C, LINbus, SPI, UART/USART, USB
Bit Size 32
Data Converter A/D 10x12b; D/A 1x10b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels YES
On Chip Program ROM Width 8
Screening Level TS 16949
Speed 48MHz
Number of I/O 26
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.62V
Supply Voltage-Max (Vsup) 3.63V
JESD-30 Code R-PBGA-B35
Base Part Number ATSAMD21E16
Reach Compliance Code compliant
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Number of Terminations 35
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SAM D21E
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Dimensions
Height Seated (Max) 0.483mm
Length 2.821mm
Width 2.529mm
Physical
Surface Mount YES
Package / Case 35-XFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
