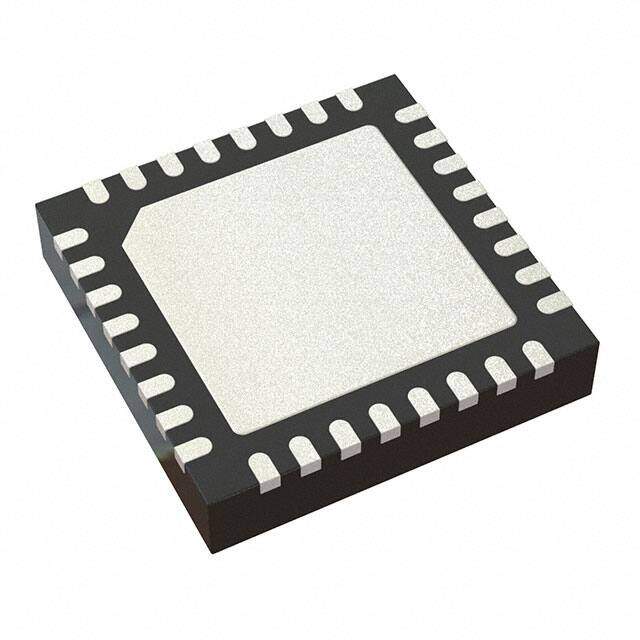

ATSAMD21E15A-MU
RoHS
RoHS compliant
RoHS compliantPackage 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
ARM Microcontrollers - MCU 32KB 4KB32QFN GRN1.6-3.6V48MHz
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
Inventory: 1604
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 5mm
Height Seated (Max) 1mm
Technical
Number of ADC Channels 10
Screening Level TS 16949
Max Frequency 48MHz
On Chip Program ROM Width 8
Core Architecture ARM
Number of Timers/Counters 3
PWM Channels YES
Data Bus Width 32b
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 10x12b; D/A 1x10b
Bit Size 32
Connectivity I2C, LINbus, SPI, UART/USART, USB
Program Memory Size 32KB 32K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Core Processor ARM? Cortex?-M0+
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.6V
RAM Size 4K x 8
Number of I/O 26
Oscillator Type Internal
Memory Size 32kB
Interface I2C, I2S, LIN, SPI, UART, USART, USB
Operating Supply Voltage 3.3V
Base Part Number ATSAMD21E15
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series SAM D21E
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Weight 188.609377mg
Package / Case 32-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
