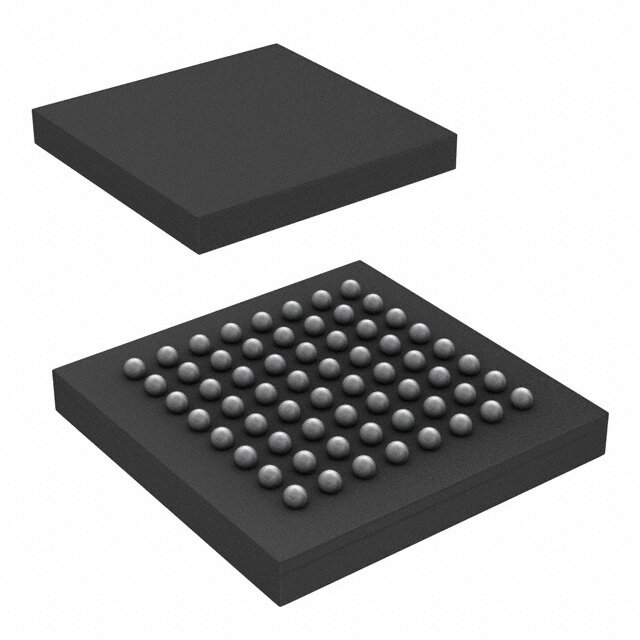

ATSAMD20J16A-CUT
RoHS
RoHS compliant
RoHS compliantPackage 64-UFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 32-Bit SAM D20J ARM Cortex M0+ RISC 64KB Flash 1.8V/2.5V/3.3V 64-Pin UFBGA T/R
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7192
≥1 USD $2.7192
Inventory: 65
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 5mm
Height Seated (Max) 0.65mm
Technical
Screening Level TS 16949
On Chip Program ROM Width 8
Core Architecture ARM
ROM (words) 65536
Number of Timers/Counters 8
DAC Channels YES
PWM Channels YES
Data Bus Width 32b
DMA Channels NO
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 20x12b; D/A 1x10b
Bit Size 32
Connectivity I2C, SPI, UART/USART
Program Memory Size 64KB 64K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, POR, WDT
Core Processor ARM? Cortex?-M0+
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.6V
RAM Size 8K x 8
Number of I/O 52
Oscillator Type Internal
Memory Size 64kB
Interface I2C, SPI, UART, USART
Supply Voltage-Min (Vsup) 1.62V
Supply Voltage-Max (Vsup) 3.63V
Base Part Number ATSAMD20J16
Time@Peak Reflow Temperature-Max (s) 30
Frequency 48MHz
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SAM D20J
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 64
Package / Case 64-UFBGA
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 19 Weeks
