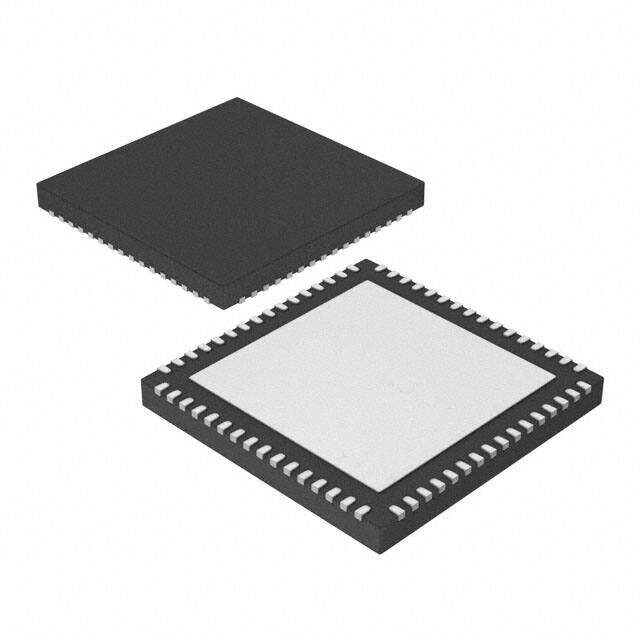

ATSAMD20J15B-MU
RoHS
/
Package 64-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 32KB FLASH 64VQFN
PDF
/
Buying Options
Total Price: USD $2.37
Unit Price: USD $2.3672
≥1 USD $2.3672
Inventory: 581
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 9mm
Length 9mm
Height Seated (Max) 1mm
Technical
Screening Level TS 16949
On Chip Program ROM Width 8
ROM (words) 32768
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 20x12b; D/A 1x10b
Bit Size 32
Connectivity I2C, SPI, UART/USART
Program Memory Size 32KB 32K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 32MHz
Peripherals Brown-out Detect/Reset, POR, WDT
Core Processor ARM? Cortex?-M0+
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.6V
RAM Size 4K x 8
Speed 48MHz
Number of I/O 52
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.62V
Supply Voltage-Max (Vsup) 3.63V
JESD-30 Code S-XQCC-N64
Base Part Number ATSAMD20J15
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
HTS Code 8542.31.00.01
Terminal Finish Matte Tin (Sn)
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series SAM D20J
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 64-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
