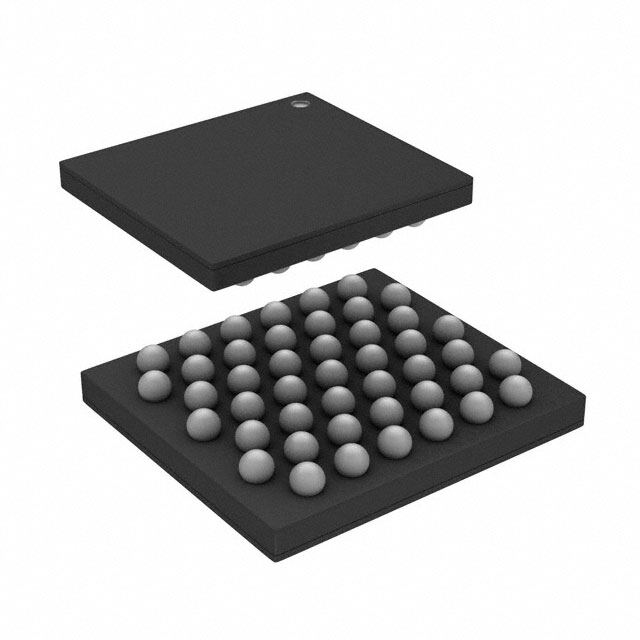

ATSAMD20G18A-UNT
RoHS
RoHS compliant
RoHS compliantPackage 45-XFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
45WLCSP105C TEMP GREEN 1.6-36V 4
PDF
/
Inventory: 4352
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.699mm
Length 2.944mm
Height Seated (Max) 0.483mm
Technical
RAM (bytes) 32768
Screening Level TS 16949
On Chip Program ROM Width 8
ROM (words) 262144
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 14x12b; D/A 1x10b
Bit Size 32
Connectivity I2C, SPI, UART/USART
Program Memory Size 256KB 256K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 32MHz
Peripherals Brown-out Detect/Reset, POR, WDT
Core Processor ARM? Cortex?-M0+
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.63V
RAM Size 32K x 8
Speed 48MHz
Number of I/O 38
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.62V
Supply Voltage-Max (Vsup) 3.63V
JESD-30 Code R-PBGA-B45
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code compliant
Terminal Pitch 0.4mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Terminal Finish Matte Tin (Sn)
Number of Terminations 45
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series SAM D20G
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C TA
Physical
Surface Mount YES
Package / Case 45-XFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
