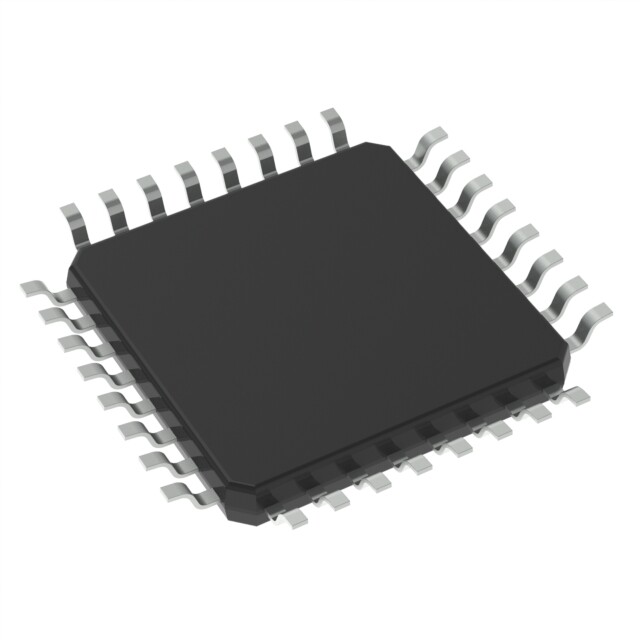

ATSAMD20E14A-ANT
RoHS
RoHS compliant
RoHS compliantPackage 32-TQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 32-Bit SAM D20E ARM Cortex M0+ RISC 16KB Flash 3.3V 32-Pin TQFP T/R
PDF
/
Buying Options
Total Price: USD $16.56
Unit Price: USD $16.55698
≥1 USD $16.55698
≥10 USD $15.619801
≥100 USD $14.735656
≥500 USD $13.901565
≥1000 USD $13.114681
Inventory: 1713
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7mm
Length 7mm
Height Seated (Max) 1.2mm
Technical
Number of Programmable I/O 26
Core Architecture ARM
Density 128 kb
Number of Timers/Counters 6
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 10x12b; D/A 1x10b
Bit Size 32
Connectivity I2C, SPI, UART/USART
Program Memory Size 16KB 16K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, POR, WDT
Core Processor ARM? Cortex?-M0+
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.6V
RAM Size 2K x 8
Number of I/O 26
Oscillator Type Internal
Memory Size 16kB
Interface I2C, SPI, UART, USART
Operating Supply Voltage 3.3V
Base Part Number ATSAMD20E14
Time@Peak Reflow Temperature-Max (s) 30
Frequency 48MHz
Terminal Pitch 0.8mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series SAM D20E
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C TA
Physical
Number of Pins 32
Surface Mount YES
Package / Case 32-TQFP
Mounting Type Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 8 Weeks
