ATSAMD11D14A-UUT
RoHS
RoHS compliant

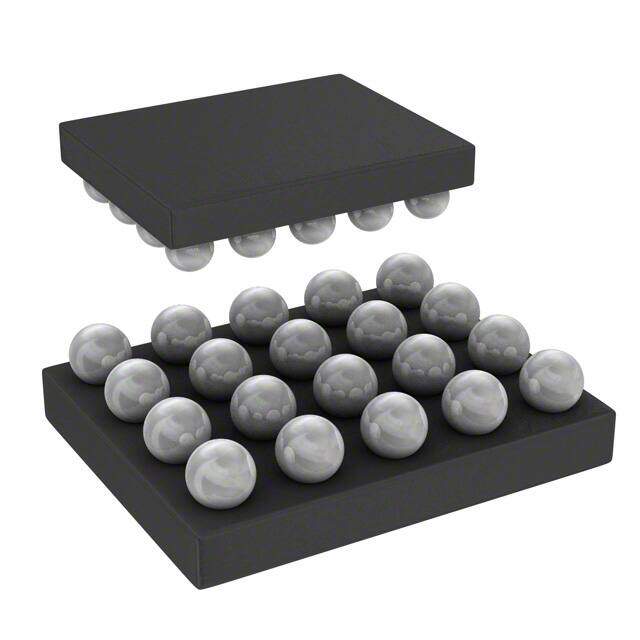

RoHS compliantPackage 20-XFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 16KB FLASH 20WLCSP
PDF
/
Inventory: 8368
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 1.934mm
Length 2.434mm
Technical
CPU Family CORTEX-M0
Core Architecture ARM
ROM (words) 16384
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 8x12b; D/A 1x10b
Bit Size 32
Connectivity I2C, LINbus, SPI, UART/USART, USB
Program Memory Size 16KB 16K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, DMA, POR, WDT
Core Processor ARM? Cortex?-M0+
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.62V~3.63V
RAM Size 4K x 8
Number of I/O 18
Oscillator Type Internal
Memory Size 16kB
Interface I2C, LIN, SPI, UART, USART
Supply Voltage-Min (Vsup) 1.62V
Power Supplies 1.8/3.3V
Supply Voltage-Max (Vsup) 3.63V
Qualification Status Not Qualified
JESD-30 Code R-PBGA-B20
Base Part Number ATSAMD11
Frequency 48MHz
Terminal Pitch 0.4mm
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
Number of Terminations 20
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Series SAM D11D
Published 2016
Packaging Bulk
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 20-XFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
