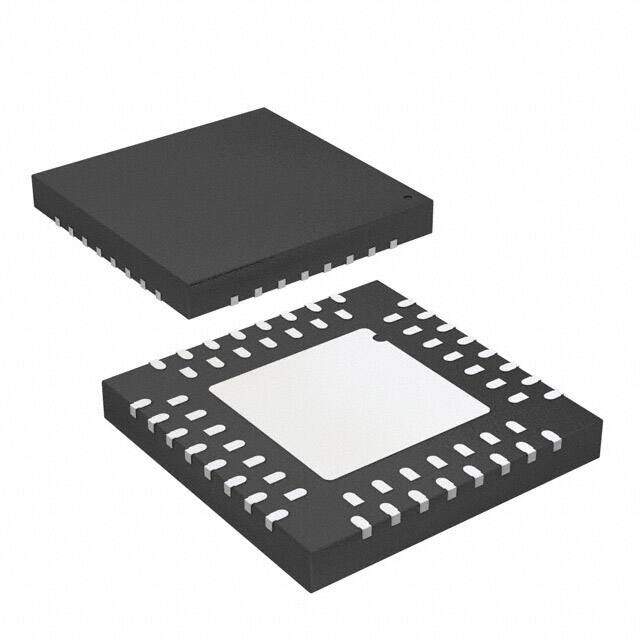

ATMEGA169P-16MCU
RoHS
RoHS compliant
RoHS compliantPackage 64-VQFN Dual Rows, Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU AVR 16K ISP FLSH 16MHZ 64QFN
PDF
/
Buying Options
Total Price: USD $4.48
Unit Price: USD $4.4792
≥1 USD $4.4792
Inventory: 1023
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 7mm
Height Seated (Max) 1mm
Technical
EEPROM Size 512 x 8
ROM (words) 8192
Number of Timers/Counters 3
DAC Channels NO
PWM Channels YES
Data Bus Width 8b
DMA Channels NO
Has ADC YES
Data Converter A/D 8x10b
Bit Size 8
Supply Current-Max 9.5mA
Connectivity SPI, UART/USART, USI
Program Memory Size 16KB 8K x 16
Core Size 8-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, LCD, POR, PWM, WDT
Core Processor AVR
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.7V~5.5V
RAM Size 1K x 8
Number of I/O 54
Oscillator Type Internal
Memory Size 16kB
Interface SPI, UART, USART
Supply Voltage-Min (Vsup) 4.5V
Supply Voltage-Max (Vsup) 5.5V
Qualification Status Not Qualified
JESD-30 Code S-XQCC-N64
Base Part Number ATMEGA169P
Frequency 16MHz
Terminal Pitch 0.65mm
Supply Voltage 5V
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Subcategory Microcontrollers
Additional Feature ALSO OPERATES AT 2.7V SUPPLY AT 8 MHZ
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series AVR? ATmega
Published 2010
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 64-VQFN Dual Rows, Exposed Pad
Mounting Type Surface Mount
