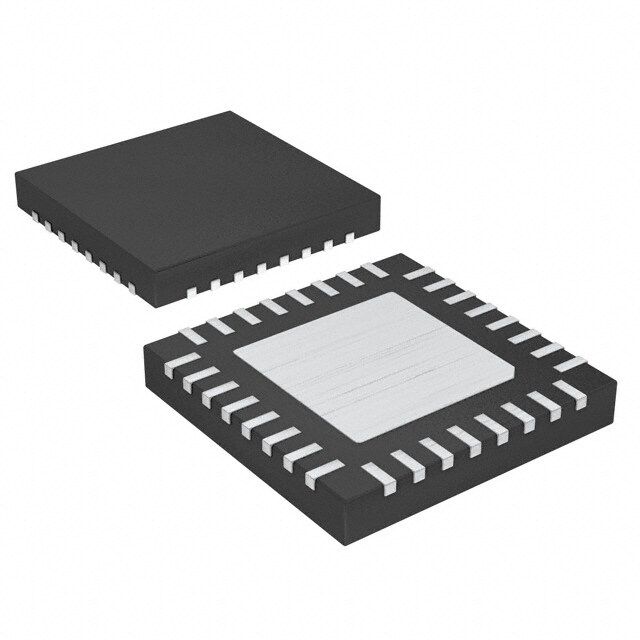

ATMEGA168PB-MUR
RoHS
RoHS compliant
RoHS compliantPackage 32-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
AVR, 16KB FLASH, 512B EE, 1KB SRAM - 20 MHZ, QFN/MLF, IND TEMP GREEN, 5V T&R
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.3376
≥1 USD $1.3376
≥10 USD $1.2232
≥100 USD $1.1088
Inventory: 6095
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2015
Series AVR? ATmega
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
Technology CMOS
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Pitch 0.5mm
Frequency 20MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number ATMEGA168PB
JESD-30 Code S-PQCC-N32
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 1.8V
Interface I2C, SPI, UART, USART
Memory Size 16kB
Oscillator Type Internal
Number of I/O 27
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor AVR
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 16KB 8K x 16
Connectivity I2C, SPI, UART/USART
Bit Size 8
Data Converter A/D 8x10b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels NO
EEPROM Size 512 x 8
On Chip Program ROM Width 8
Screening Level TS 16949
Dimensions
Height Seated (Max) 0.9mm
Length 5mm
Width 5mm
Compliance
RoHS Status ROHS3 Compliant
