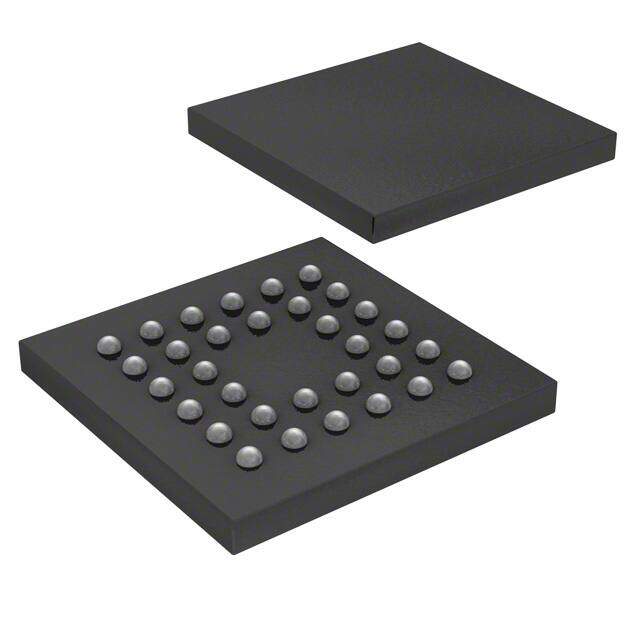

ATMEGA168A-CCU
RoHS
RoHS compliant
RoHS compliantPackage 32-UFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 8BIT 16KB FLASH 32UFBGA
PDF
/
Inventory: 1786
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 4mm
Height Seated (Max) 0.6mm
Technical
EEPROM Size 512 x 8
ROM (words) 8192
Number of Timers/Counters 3
DAC Channels NO
PWM Channels YES
Data Bus Width 8b
DMA Channels NO
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 8x10b
Bit Size 8
Supply Current-Max 12mA
Connectivity I2C, SPI, UART/USART
Program Memory Size 16KB 8K x 16
Core Size 8-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor AVR
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
RAM Size 1K x 8
Number of I/O 23
Oscillator Type Internal
Memory Size 16kB
Interface I2C, SPI, UART, USART
Supply Voltage-Min (Vsup) 4.5V
Power Supplies 2/5V
Supply Voltage-Max (Vsup) 5.5V
Qualification Status Not Qualified
Base Part Number ATMEGA168A
Frequency 20MHz
Terminal Pitch 0.5mm
Supply Voltage 5V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microcontrollers
Additional Feature ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 10 MHZ AND 1.8 V MINIMUM SUPPLY AT 4 MHZ
Number of Terminations 32
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
Series AVR? ATmega
Published 2012
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 32
Package / Case 32-UFBGA
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Factory Lead Time 8 Weeks
