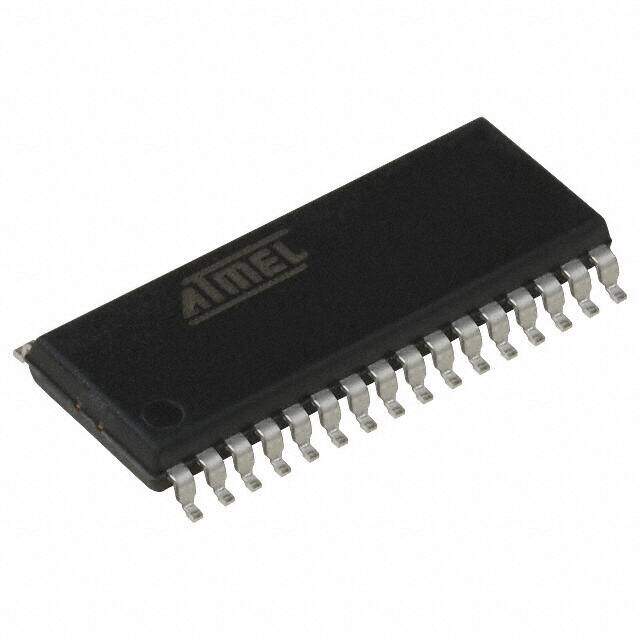

AT90PWM3-16SQ
RoHS
RoHS compliant
RoHS compliantPackage 32-SOIC (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
Lead Free ROHS3Compliant Surface Mount FLASH Microcontroller 16mus 105C 16MHz 512x 8
PDF
/
Buying Options
Total Price: USD $3.75
Unit Price: USD $3.754916
≥1 USD $3.754916
≥10 USD $3.542371
≥100 USD $3.341855
≥500 USD $3.152695
≥1000 USD $2.974244
Inventory: 6107
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 32-SOIC (0.295, 7.50mm Width)
Number of Pins 32
Supplier Device Package 32-SOIC
Technical
Operating Temperature -40°C~105°C TA
Packaging Tube
Published 2008
Series AVR? 90PWM Lighting
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Frequency 16MHz
Base Part Number AT90PWM3
Interface SPI, UART, USART
Max Supply Voltage 5.5V
Min Supply Voltage 2.7V
Memory Size 8kB
Oscillator Type Internal
Number of I/O 27
Speed 16MHz
RAM Size 512 x 8
Memory Type FLASH
Voltage - Supply (Vcc/Vdd) 2.7V~5.5V
Core Processor AVR
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 8KB 8K x 8
Connectivity SPI, UART/USART
Data Converter A/D 11x10b; D/A 1x10b
Watchdog Timer Yes
Access Time 16 μs
Data Bus Width 8b
Number of Timers/Counters 2
Core Architecture AVR
EEPROM Size 512 x 8
Max Frequency 16MHz
Number of Programmable I/O 27
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
