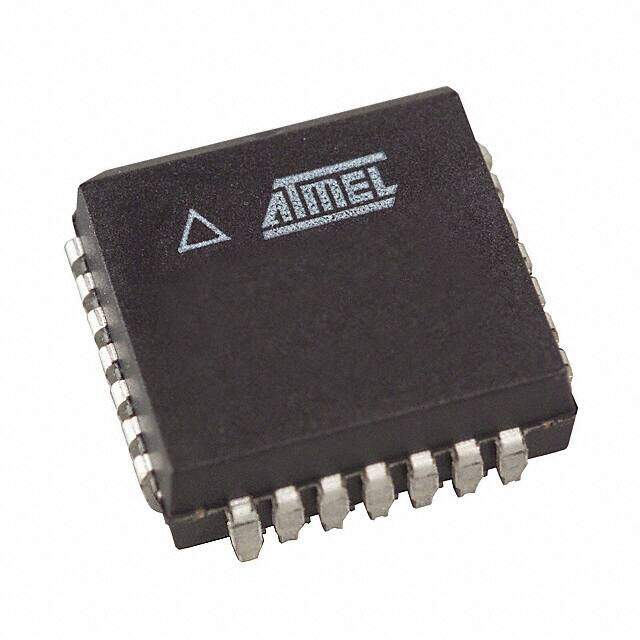

AT89C5115-SISUM image
Favorite
AT89C5115-SISUM image
Favorite

AT89C5115-SISUM

Microchip Technology
RoHS
RoHS RoHS compliant
Package 28-LCC (J-Lead)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description 8-bit Microcontrollers - MCU C51 16K Flash ADC
PDF
/
Buying Options
Total Price: USD $8.51
Unit Price: USD $8.5096
≥1 USD $8.5096
≥10 USD $7.7968
≥100 USD $7.048888
Inventory: 204
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 4 Weeks

Physical

Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 28-LCC (J-Lead)
Number of Pins 28

Technical

Operating Temperature -40°C~85°C TA
Packaging Tube
Published 2008
Series 89C
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 28
Subcategory Microcontrollers
Max Power Dissipation 1W
Technology CMOS
Terminal Position QUAD
Terminal Form J BEND
Supply Voltage 5V
Terminal Pitch 1.27mm
Frequency 40MHz
Base Part Number AT89C5115
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 3V
Interface UART, USART
Memory Size 16kB
Oscillator Type External
Number of I/O 20
RAM Size 512 x 8
Voltage - Supply (Vcc/Vdd) 3V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor 80C51
Peripherals POR, PWM, WDT
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 16KB 16K x 8
Connectivity UART/USART
Bit Size 8
Data Converter A/D 8x10b
Access Time 40 μs
Has ADC YES
DMA Channels NO
Data Bus Width 8b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 3
Core Architecture 8051
EEPROM Size 2K x 8

Dimensions

Height Seated (Max) 4.57mm
Length 11.505mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
