XE164HN16F80LAAFXUMA1
RoHS
/

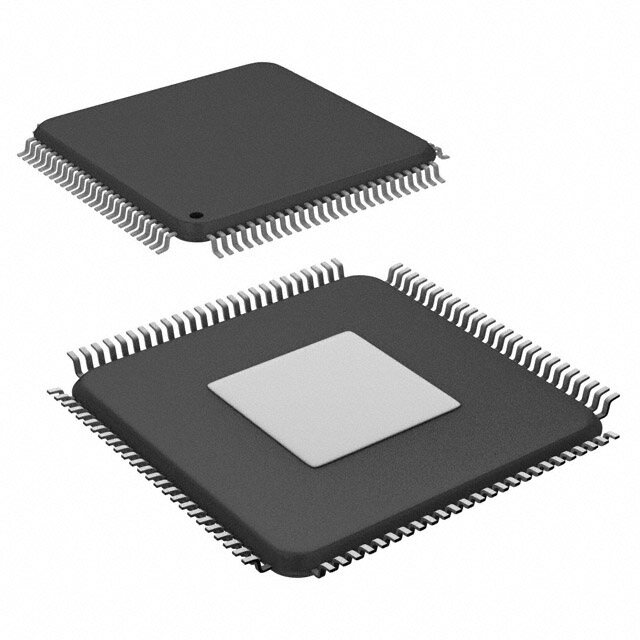

Package 100-LQFP Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 16-Bit XE166 C166 CISC/DSP/RISC 128KB Flash 3.3V/5V 100-Pin LQFP
PDF
/
Inventory: 7258
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Number of Programmable I/O 76
Max Frequency 80MHz
Number of Timers/Counters 5
Data Bus Width 16b
Watchdog Timer Yes
Data Converter A/D 16x10b
Connectivity EBI/EMI, I2C, LINbus, SPI, SSC, UART/USART, USI
Program Memory Size 128KB 128K x 8
Core Size 16-Bit
Program Memory Type FLASH
Peripherals I2S, POR, PWM, WDT
Core Processor C166SV2
Voltage - Supply (Vcc/Vdd) 3V~5.5V
Memory Type FLASH
RAM Size 18K x 8
Speed 80MHz
Number of I/O 75
Oscillator Type Internal
Memory Size 128kB
Min Supply Voltage 1.4V
Max Supply Voltage 5.5V
Interface CAN, EBI/EMI, I2C, I2S, LIN, SPI, UART, USART
Base Part Number SA*XE164HN
Frequency 80MHz
Max Power Dissipation 800mW
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series XE16x
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Supplier Device Package PG-LQFP-100-8
Number of Pins 100
Package / Case 100-LQFP Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 25 Weeks
