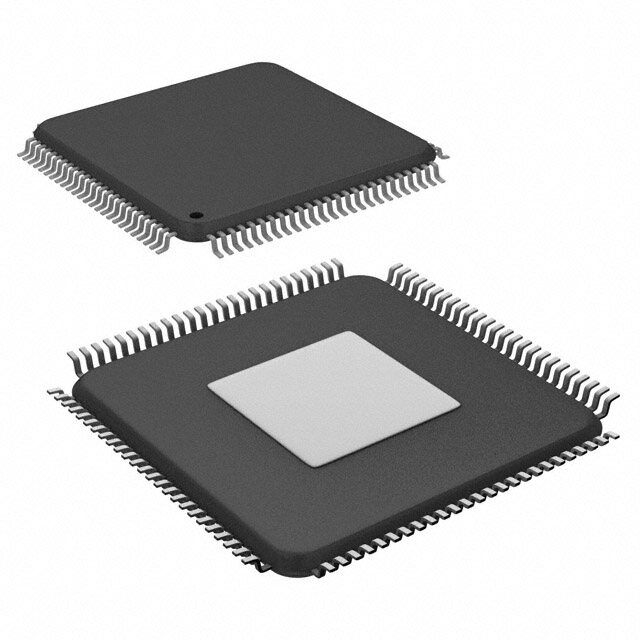

XE164F96F66LACFXUMA1
RoHS
RoHS compliant
RoHS compliantPackage 100-LQFP Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
INFINEON SAF-XE164F-96F66L AC16 Bit Microcontroller, High Performance, XE166, 80 MHz, 768 KB, 82 KB, 100 Pins, LQFP
PDF
/
Buying Options
Total Price: USD $75.17
Unit Price: USD $75.17445
≥1 USD $75.17445
≥10 USD $61.6816
≥100 USD $59.75405
≥500 USD $57.8265
≥1000 USD $55.89895
Inventory: 1125
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 100-LQFP Exposed Pad
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2008
Series XE16x
JESD-609 Code e3
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
ECCN Code 3A991.A.2
Terminal Finish Matte Tin (Sn)
HTS Code 8542.31.00.01
Subcategory Microcontrollers
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.5V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number SA*XE164F
JESD-30 Code S-PQFP-G100
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 1.6V
Power Supplies 1.53.3/5V
Supply Voltage-Min (Vsup) 1.4V
Oscillator Type Internal
Number of I/O 75
Speed 66MHz
RAM Size 82K x 8
Voltage - Supply (Vcc/Vdd) 3V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor C166SV2
Peripherals I2S, POR, PWM, WDT
Clock Frequency 40MHz
Program Memory Type FLASH
Core Size 16-Bit
Program Memory Size 768KB 768K x 8
Connectivity CANbus, EBI/EMI, I2C, LINbus, SPI, SSC, UART/USART, USI
Bit Size 16
Data Converter A/D 16x10b
Has ADC YES
DMA Channels NO
PWM Channels YES
DAC Channels NO
Address Bus Width 24
ROM (words) 786432
External Data Bus Width 16
Dimensions
Height Seated (Max) 1.6mm
Length 14mm
Width 14mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
