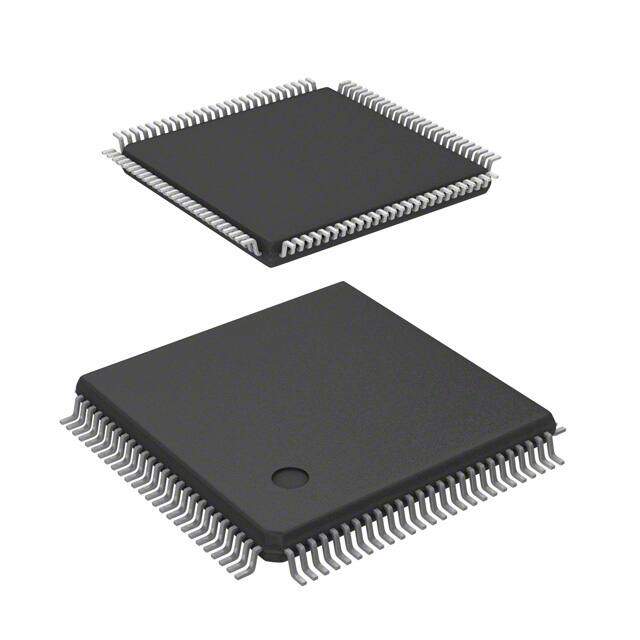

XC164CS16F40FBBFXQMA1
RoHS
RoHS compliant
RoHS compliantPackage 100-LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
MCU 16-bit XC166 CISC/DSP/RISC 128KB Flash 2.5V/5V 100-Pin TQFP
PDF
/
Buying Options
Total Price: USD $40.27
Unit Price: USD $40.2724
≥1 USD $40.2724
≥10 USD $33.04385
≥100 USD $32.0112
≥500 USD $30.97855
≥1000 USD $29.9459
Inventory: 541
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 100-LQFP
Number of Pins 100
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2001
Series XC16x
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 2.5V
Frequency 40MHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Operating Supply Voltage 5V
Supply Voltage-Max (Vsup) 2.7V
Interface CAN, EBI/EMI, SPI, UART, USART
Memory Size 128kB
Oscillator Type Internal
Number of I/O 79
RAM Size 8K x 8
Voltage - Supply (Vcc/Vdd) 2.35V~2.7V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor C166SV2
Peripherals PWM, WDT
Program Memory Type FLASH
Core Size 16-Bit
Program Memory Size 128KB 128K x 8
Connectivity CANbus, EBI/EMI, SPI, UART/USART
Bit Size 16
Data Converter A/D 14x8/10b
Watchdog Timer Yes
Access Time 40 μs
Has ADC YES
DMA Channels NO
Data Bus Width 16b
PWM Channels YES
DAC Channels NO
Number of Timers/Counters 5
Address Bus Width 24
ROM (words) 131072
On Chip Program ROM Width 8
RAM (bytes) 8192
Dimensions
Height Seated (Max) 1.6mm
Length 14mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
