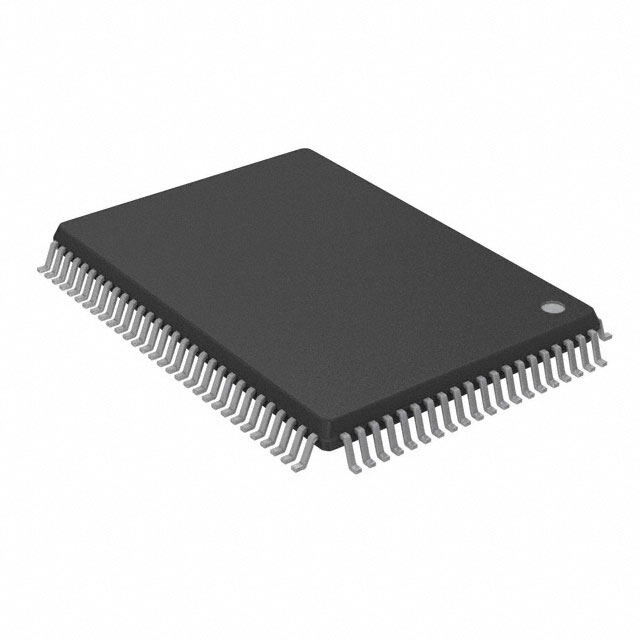

MB96F347RSBPQC-GSE2 image
Favorite
MB96F347RSBPQC-GSE2 image
Favorite

MB96F347RSBPQC-GSE2

Cypress Semiconductor Corp
RoHS
RoHS RoHS compliant
Package 100-BQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description F2MC-16FX F2MC-16FX MB96340 Microcontroller IC 16-Bit 56MHz 416KB (416K x 8) FLASH 100-PQFP (14x20)
PDF
/
Inventory: 5639
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 100-BQFP
Surface Mount YES
Number of Pins 100

Technical

Operating Temperature -40°C~105°C TA
Packaging Tray
Series F2MC-16FX MB96340
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
ECCN Code EAR99
HTS Code 8542.31.00.01
Subcategory Microcontrollers
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Frequency 56MHz
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 3.3/5V
Supply Voltage-Min (Vsup) 3V
Interface CAN, EBI/EMI, I2C, LIN, SCI, UART, USART
Memory Size 416kB
Oscillator Type Internal
Number of I/O 82
RAM Size 16K x 8
Voltage - Supply (Vcc/Vdd) 3V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Core Processor F2MC-16FX
Peripherals DMA, LVD, LVR, POR, PWM, WDT
Program Memory Type FLASH
Core Size 16-Bit
Program Memory Size 416KB 416K x 8
Connectivity CANbus, EBI/EMI, I2C, LINbus, SCI, UART/USART
Supply Current-Max 60mA
Bit Size 16
Data Converter A/D 24x10b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels NO
Address Bus Width 24
ROM (words) 212992
External Data Bus Width 16
RAM (bytes) 16384

Dimensions

Height Seated (Max) 3.35mm
Length 20mm
Width 14mm

Compliance

RoHS Status ROHS3 Compliant
