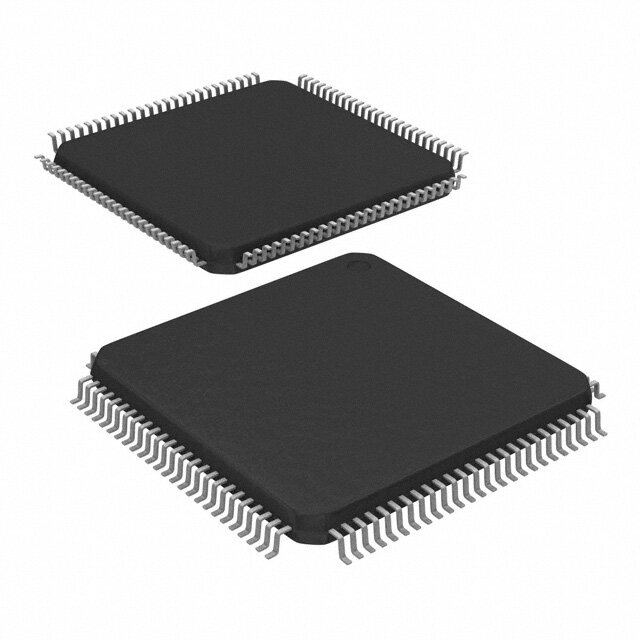

CY9BF515NPMC-G-JNE2
RoHS
RoHS compliant
RoHS compliantPackage 100-LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 416KB FLASH 100LQFP
PDF
/
Buying Options
Total Price: USD $0.35
Unit Price: USD $0.347183
≥1 USD $0.347183
≥200 USD $0.134362
≥500 USD $0.129636
≥900 USD $0.127299
Inventory: 1102
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 100-LQFP
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Series FM3 MB9B510R
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
Terminal Finish Tin (Sn)
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 4.5V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-PQFP-G100
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 2.7V
Oscillator Type Internal
Number of I/O 83
Speed 144MHz
RAM Size 48K x 8
Voltage - Supply (Vcc/Vdd) 2.7V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-M3
Peripherals DMA, LVD, POR, PWM, WDT
Clock Frequency 48MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 416KB 416K x 8
Connectivity CANbus, CSIO, EBI/EMI, I2C, LINbus, UART/USART, USB
Bit Size 32
Data Converter A/D 16x12b
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels NO
Address Bus Width 25
ROM (words) 425984
On Chip Program ROM Width 8
External Data Bus Width 16
RAM (bytes) 49152
Dimensions
Height Seated (Max) 1.7mm
Length 14mm
Width 14mm
Compliance
RoHS Status ROHS3 Compliant
