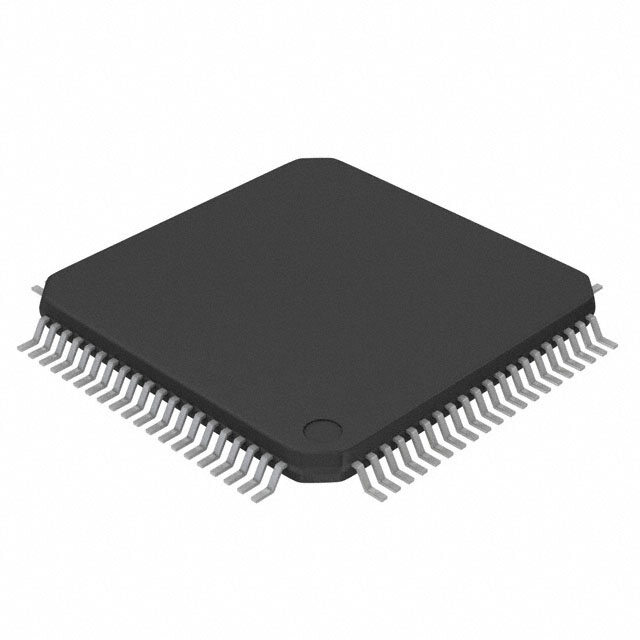

CY9AFA44MBPMC-G-JNE2
RoHS
RoHS compliant
RoHS compliantPackage 80-LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 288KB FLASH 80LQFP
PDF
/
Inventory: 3918
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 12mm
Length 12mm
Height Seated (Max) 1.7mm
Technical
RAM (bytes) 32768
External Data Bus Width 8
On Chip Program ROM Width 8
ROM (words) 294912
Address Bus Width 21
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 17x12b
Bit Size 32
Connectivity CSIO, EBI/EMI, I2C, UART/USART
Program Memory Size 288KB 288K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 48MHz
Peripherals DMA, LCD, LVD, POR, PWM, WDT
Core Processor ARM? Cortex?-M3
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.65V~3.6V
RAM Size 32K x 8
Speed 40MHz
Number of I/O 66
Oscillator Type Internal
Supply Voltage-Min (Vsup) 1.65V
Supply Voltage-Max (Vsup) 3.6V
JESD-30 Code S-PQFP-G80
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 2.7V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Terminal Finish Tin (Sn)
Number of Terminations 80
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series FM3 MB9AA40NB
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 80-LQFP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
