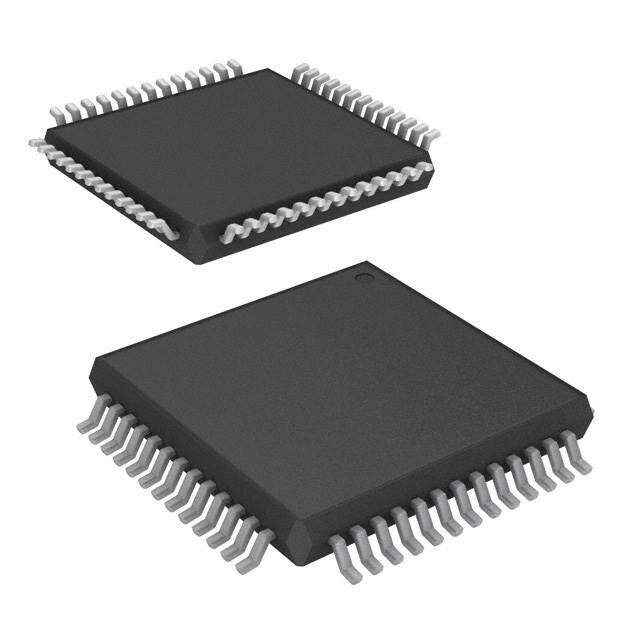

CY9AF421KPMC1-G-JNE2
RoHS
RoHS compliant
RoHS compliantPackage 52-LQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 64KB FLASH 52LQFP
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.32531
≥1 USD $0.32531
≥200 USD $0.125894
≥500 USD $0.12147
≥1000 USD $0.119291
Inventory: 1484
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 10mm
Length 10mm
Height Seated (Max) 1.7mm
Technical
RAM (bytes) 4096
On Chip Program ROM Width 8
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 8x12b; D/A 1x10b
Bit Size 32
Connectivity CANbus, CSIO, I2C, LINbus, UART/USART
Program Memory Size 64KB 64K x 8
Core Size 32-Bit
Program Memory Type FLASH
Clock Frequency 48MHz
Peripherals LVD, POR, WDT
Core Processor ARM? Cortex?-M3
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.7V~5.5V
RAM Size 8K x 8
Speed 40MHz
Number of I/O 36
Oscillator Type Internal
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 5.5V
JESD-30 Code S-PQFP-G52
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Supply Voltage 4.5V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position QUAD
Technology CMOS
Terminal Finish Tin (Sn)
Number of Terminations 52
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Series FM3 MB9A420L
Packaging Tray
Operating Temperature -40°C~105°C TA
Physical
Surface Mount YES
Package / Case 52-LQFP
Mounting Type Surface Mount
