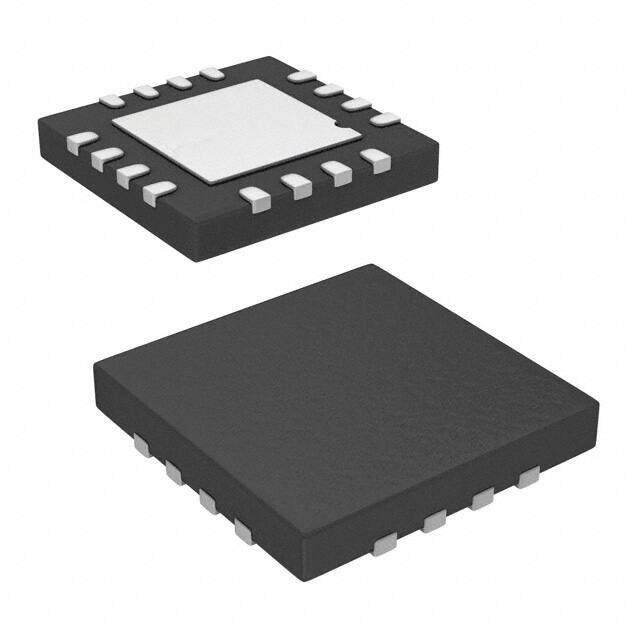

CY8C4013LQI-411
RoHS
RoHS compliant
RoHS compliantPackage 16-UFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
CYPRESS SEMICONDUCTOR CY8C4013LQI-41132 Bit Microcontroller, PSoC 4 Series, ARM Cortex-M0, 16 MHz, 8 KB, 2 KB, 16 Pins, QFN
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.279071
≥1 USD $1.279071
Inventory: 405
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 3mm
Height Seated (Max) 0.6mm
Technical
Bus Compatibility I2C
RAM (words) 2000
Boundary Scan NO
Core Architecture ARM
Number of Timers/Counters 1
Data Bus Width 32b
Data Converter D/A 1x7b, 1x8b
Supply Current-Max 4.5mA
Connectivity I2C
Program Memory Size 8KB 8K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor ARM? Cortex?-M0
uPs/uCs/Peripheral ICs Type MULTIFUNCTION PERIPHERAL
Voltage - Supply (Vcc/Vdd) 1.71V~5.5V
RAM Size 2K x 8
Number of I/O 12
Oscillator Type Internal
Memory Size 8kB
Supply Voltage-Max (Vsup) 5.5V
Operating Supply Voltage 1.8V
Base Part Number CY8C4013
Frequency 16MHz
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e4
Series PSOC? 4 CY8C4000
Published 2011
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Weight 57.09594mg
Number of Pins 16
Package / Case 16-UFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Factory Lead Time 13 Weeks
