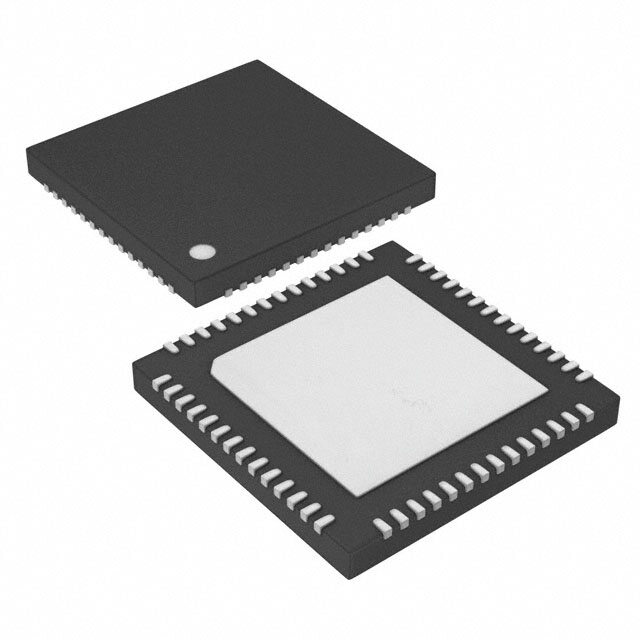

FT931Q-T
RoHS
RoHS compliant
RoHS compliantPackage 56-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 128KB FLASH 56QFN
PDF
/
Buying Options
Total Price: USD $8.13
Unit Price: USD $8.129863
≥1 USD $8.129863
≥10 USD $7.669687
≥100 USD $7.235549
≥500 USD $6.825993
≥1000 USD $6.439618
Inventory: 1400
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 8mm
Length 8mm
Height Seated (Max) 0.9mm
Technical
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 3x10b; D/A 2x10b
Bit Size 32
Connectivity I2C, SD, SPI, UART/USART, USB
Program Memory Size 128KB 128K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals POR, PWM, WDT
Core Processor FT32
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.97V~3.63V
RAM Size 32K x 8
Speed 100MHz
Number of I/O 40
Oscillator Type Internal
Supply Voltage-Min (Vsup) 2.97V
Supply Voltage-Max (Vsup) 3.63V
JESD-30 Code S-XQCC-N56
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Additional Feature 128KB ON-CHIP SHADOW PROGRAM MEMORY
Number of Terminations 56
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series FT93x
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 56-VFQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
