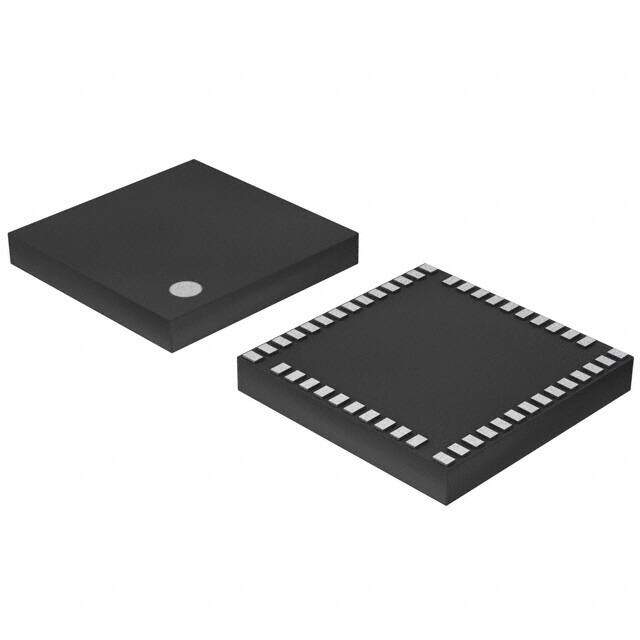

CP3UB17K38/NOPB image
Favorite
CP3UB17K38/NOPB image
Favorite

CP3UB17K38/NOPB

Texas Instruments
RoHS
RoHS RoHS compliant
Package 48-TFLGA, CSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description IC CTRLR W/USB INTERFACE 48-CSP
PDF
/
Inventory: 2233
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status ROHS3 Compliant

Dimensions

Width 7mm
Length 7mm
Height Seated (Max) 1.1mm

Technical

Controller Series CP3000
Integrated Cache YES
Format FIXED POINT
Low Power Mode YES
Boundary Scan YES
Bit Size 16
Supply Current-Max 15mA
Program Memory Type FLASH (256kB)
Clock Frequency 12MHz
Core Processor CR16C
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Memory Type FLASH
RAM Size 10K x 8
Speed 24 MHz
Number of I/O 21
Interface ACCESS.bus, Audio, Microwire/SPI, UART, USB
Power Supplies 2.52.5/3.3V
Qualification Status Not Qualified
Pin Count 48
Base Part Number CP3UB17
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) 260
Terminal Form BUTT
Terminal Position BOTTOM
Voltage - Supply 2.25V~2.75V
Technology CMOS
Subcategory Microcontrollers
HTS Code 8542.31.00.01
Applications Connectivity Processor
Number of Terminations 48
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Obsolete
Pbfree Code no
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Number of Pins 48
Package / Case 48-TFLGA, CSP
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
