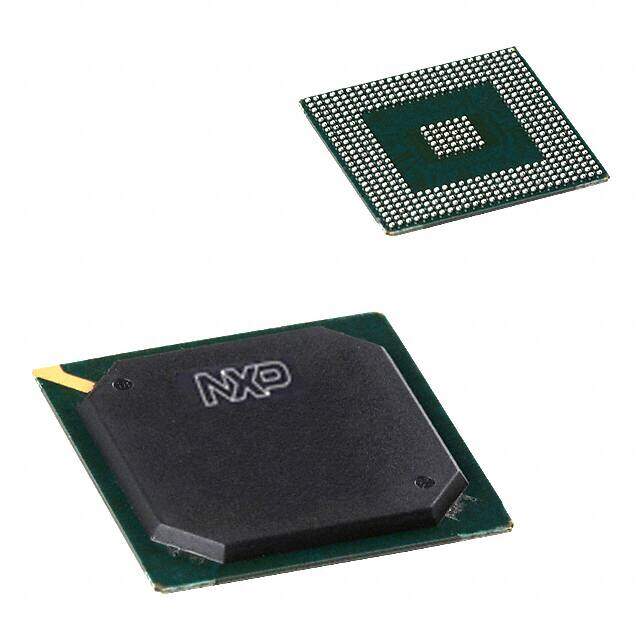

PNX1501E,557
RoHS
RoHS compliant
RoHS compliantPackage 456-BGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description
IC MEDIA PROC 266MHZ 456-BGA
PDF
/
Inventory: 7909
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 27mm
Length 27mm
Height Seated (Max) 2.45mm
Technical
Controller Series Nexperia
Consumer IC Type CONSUMER CIRCUIT
Core Processor TM3260
Number of I/O 61
Interface I2C, 2-Wire Serial
Supply Voltage-Min (Vsup) 3.13V
Power Supplies 1.2V
Supply Voltage-Max (Vsup) 3.47V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B456
Pin Count 456
Base Part Number PNX15*
Time@Peak Reflow Temperature-Max (s) 20
Reach Compliance Code unknown
Terminal Pitch 1mm
Number of Functions 1
Peak Reflow Temperature (Cel) 225
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 1.14V~1.26V
Subcategory Other Consumer ICs
HTS Code 8542.39.00.01
Additional Feature ALSO REQUIRES 3.3V SUPPLY
Applications Multimedia
Terminal Finish TIN LEAD
Number of Terminations 456
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e0
Series PNX15xx
Published 2002
Packaging Tray
Operating Temperature 0°C~85°C
Physical
Surface Mount YES
Package / Case 456-BGA
Mounting Type Surface Mount
