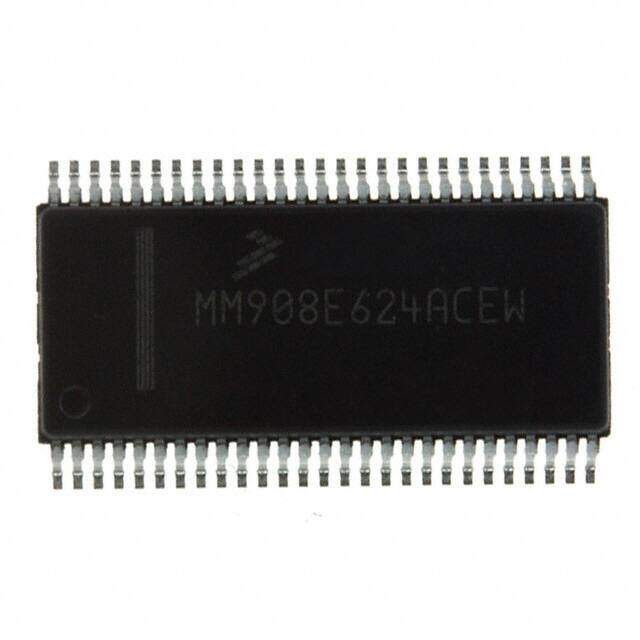

MM908E624ACPEWR2
RoHS
RoHS compliant
RoHS compliantPackage 54-BSSOP (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description
8-bit Microcontrollers - MCU 3 HIGH SIDE DRIVER
PDF
/
Buying Options
Total Price: USD $2.77
Unit Price: USD $2.76545
≥1 USD $2.76545
≥10 USD $2.26955
≥100 USD $2.1983
≥500 USD $2.12705
≥1000 USD $2.05675
Inventory: 994
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Length 17.9mm
Height Seated (Max) 2.65mm
Technical
Controller Series 908E
DAC Channels NO
PWM Channels YES
DMA Channels NO
Has ADC YES
Bit Size 8
Program Memory Type FLASH (16kB)
Clock Frequency 9.8304MHz
Core Processor HC08
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
RAM Size 512 x 8
Speed 32 MHz
Number of I/O 16
Interface SCI, SPI
Qualification Status Not Qualified
JESD-30 Code R-PDSO-G54
Base Part Number MM908E624
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.65mm
Supply Voltage 9V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 5.5V~18V
Technology MOS
Subcategory Microcontrollers
HTS Code 8542.39.00.01
Applications Automotive Mirror Control
Terminal Finish Matte Tin (Sn)
ECCN Code 3A991.A.2
Number of Terminations 54
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e3
Published 2003
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 54-BSSOP (0.295, 7.50mm Width)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
