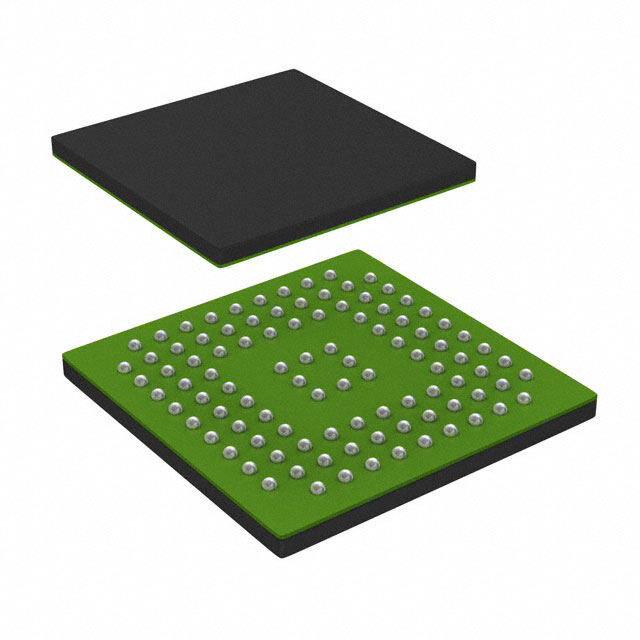

SCH3224-SY
RoHS
RoHS compliant
RoHS compliantPackage 100-WFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description
IC CTLR IO LPC MULT PORT 100BGA
PDF
/
Inventory: 3178
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 100-WFBGA
Number of Pins 100
Technical
Operating Temperature 0°C~70°C TA
Packaging Tray
Published 2016
JESD-609 Code e1
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications I/O Controller
HTS Code 8542.39.00.01
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 3V
Terminal Pitch 0.65mm
Base Part Number SCH3224
Supply Voltage-Max (Vsup) 3.63V
Supply Voltage-Min (Vsup) 2.97V
Interface IrDA, LPC, Parallel, Serial, UART
Number of I/O 24
RAM Size 256 x 8
Memory Type ROM
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER
Core Processor 8042 Keyboard Controller
Clock Frequency 33MHz
Program Memory Type ROM (2kB)
Supply Current-Max 1mA
Boundary Scan NO
Low Power Mode YES
RAM (words) 256
Number of Serial I/Os 2
Bus Compatibility PCI; UART
On Chip Data RAM Width 8
Data Transfer Rate-Max 0.1875 MBps
Number of DMA Channels 4
Communication Protocol SYNC, BYTE
Dimensions
Height Seated (Max) 0.8mm
Length 8mm
Width 8mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
