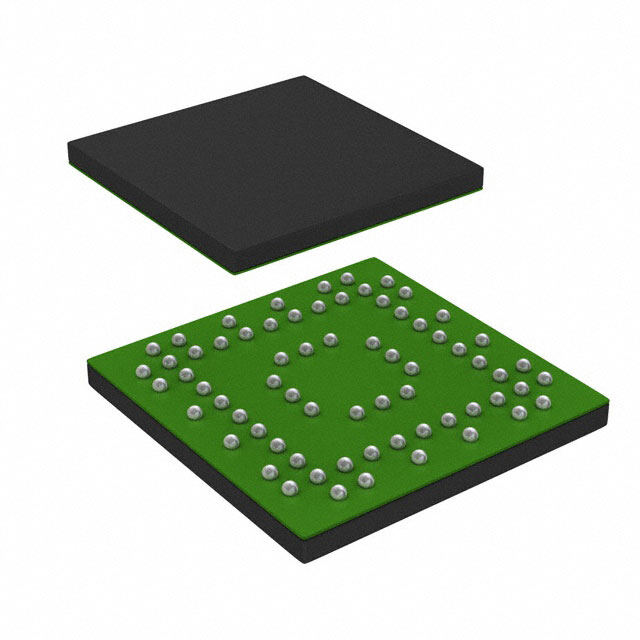

SCH3223-7U
RoHS
RoHS compliant
RoHS compliantPackage 64-WFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description
IC CTLR IO LPC MULT PORT 64WFBGA
PDF
/
Buying Options
Total Price: USD $4.26
Unit Price: USD $4.2592
≥1 USD $4.2592
Inventory: 129
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 6mm
Height Seated (Max) 0.8mm
Technical
Communication Protocol ASYNC, BIT; SYNC, BYTE; UART
Data Transfer Rate-Max 0.1875 MBps
Bus Compatibility LPC; PCI; RS485
Number of Serial I/Os 2
Screening Level ISO/TS-16949
Low Power Mode YES
Boundary Scan NO
Core Processor 8024 Keyboard Controller
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Number of I/O 19
Interface LPC, Serial, UART
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 3.6V
Base Part Number SCH3223
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Applications I/O Controller
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 64
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e1
Packaging Tray
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 64
Package / Case 64-WFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
