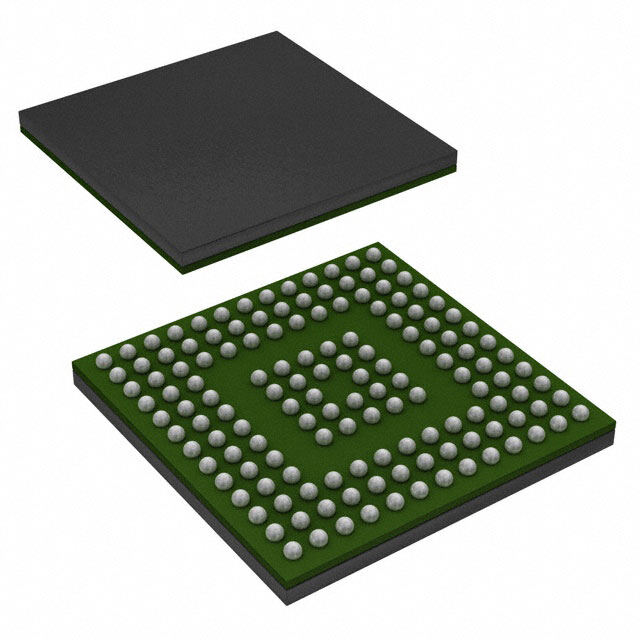

MEC1705Q-C1-I/SZ
RoHS
RoHS compliant
RoHS compliantPackage 144-WFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description
EMBEDDED CONTROLLER 480 KB TOTAL
PDF
/
Inventory: 6585
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 9mm
Length 9mm
Height Seated (Max) 0.8mm
Technical
Controller Series MEC170x
Core Processor ARM? Cortex?-M4
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
RAM Size 480KB
Number of I/O 123
Interface ACPI, EBI/EMI, eSPI, I2C, LPC, PECI, PS/2, QSPI, SPI
JESD-30 Code S-PBGA-B144
Base Part Number MEC170
Reach Compliance Code unknown
Terminal Pitch 0.65mm
Supply Voltage 1.8V
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 1.71V~3.465V
Technology CMOS
Additional Feature IT ALSO OPERATES AT 3.3 NOMINAL SUPPLY VOLTAGE
Applications Keyboard and Embedded Controller
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2017
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 144-WFBGA
Mounting Type Surface Mount
