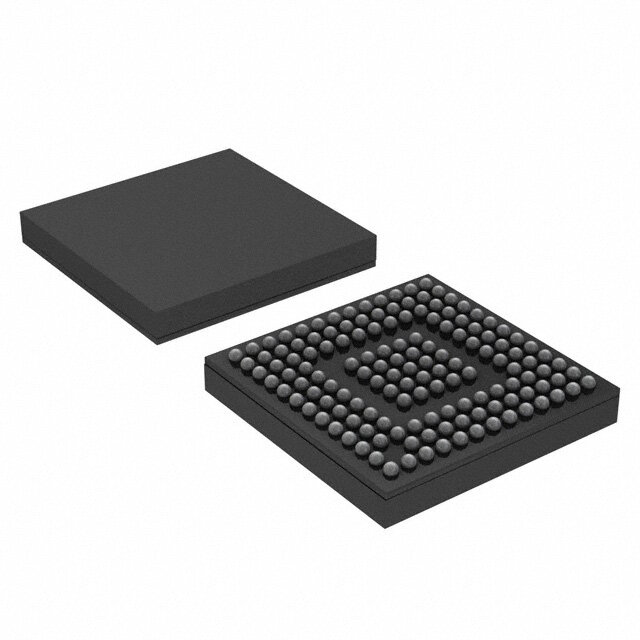

MEC1704Q-C2-I/SZ
RoHS
/
Package 144-WFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description
EMBEDDED CONTROLLER 480 KB TOTAL
PDF
/
Inventory: 7081
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Surface Mount
Package / Case 144-WFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 144
Applications Keyboard and Embedded Controller
Additional Feature ALSO OPERATES AT 3.3V NOMINAL SUPPLY VOLTAGE
Technology CMOS
Voltage - Supply 1.71V~3.465V
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1.8V
Terminal Pitch 0.65mm
Reach Compliance Code compliant
Base Part Number MEC170
JESD-30 Code S-PBGA-B144
Interface ACPI, EBI/EMI, eSPI, I2C, LPC, PECI, PS/2, QSPI, SPI
Number of I/O 123
RAM Size 480KB
uPs/uCs/Peripheral ICs Type MICROPROCESSOR CIRCUIT
Core Processor ARM? Cortex?-M4
Controller Series MEC170x
Dimensions
Height Seated (Max) 0.8mm
Length 9mm
Width 9mm
