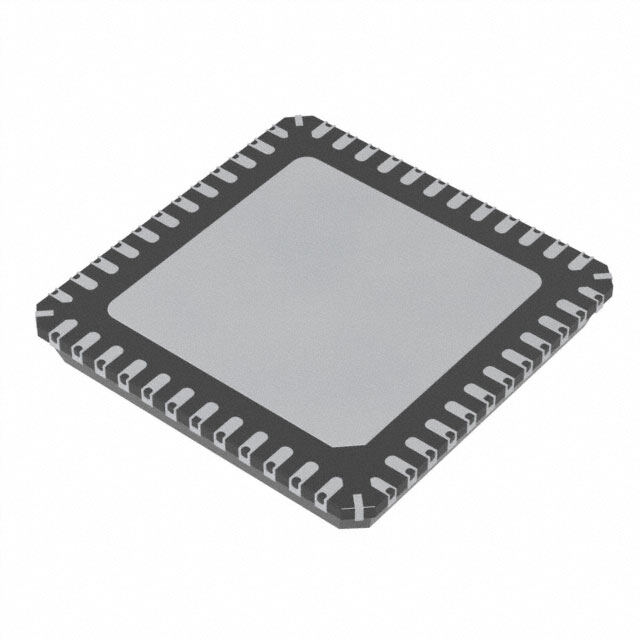

TLE9832QVXUMA2
RoHS
/
Package 48-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description
MCU 8-bit XC800 8051 CISC 36KB Flash 5V 48-Pin VQFN T/R
PDF
/
Buying Options
Total Price: USD $3.76
Unit Price: USD $3.75535
≥1 USD $3.75535
≥10 USD $3.0818
≥100 USD $2.9849
≥500 USD $2.88895
≥1000 USD $2.793
Inventory: 1130
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 7mm
Height Seated (Max) 0.9mm
Technical
RAM (bytes) 3328
Number of Programmable I/O 16
Max Frequency 40MHz
On Chip Program ROM Width 8
Core Architecture 8051
ROM (words) 36864
Number of Timers/Counters 5
DAC Channels NO
PWM Channels YES
Data Bus Width 8b
DMA Channels NO
Has ADC YES
Watchdog Timer Yes
Bit Size 8
Program Memory Type FLASH (36kB)
Core Processor XC800
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Memory Type FLASH
RAM Size 3.25K x 8
Number of I/O 11
Memory Size 36kB
Interface LIN, SSI, UART
Operating Supply Voltage 5V
JESD-30 Code S-XQCC-N48
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Supply Voltage 5.5V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 3V~27V
Technology CMOS
Applications Automotive
Number of Terminations 48
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Surface Mount YES
Package / Case 48-VFQFN Exposed Pad
Mounting Type Surface Mount
