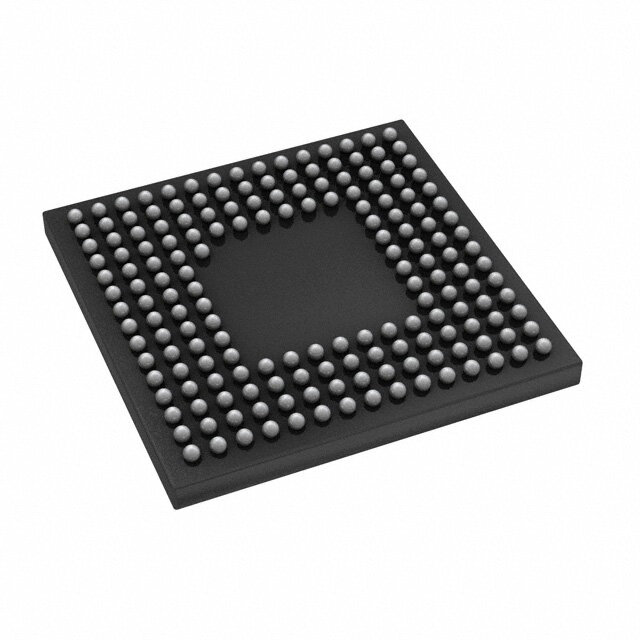

NS7520B-1-I55
RoHS
RoHS compliant
RoHS compliantPackage 177-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description
SOC NS7520 ARM7TDMI 0.18um 177-Pin FBGA
PDF
/
Buying Options
Total Price: USD $134.24
Unit Price: USD $134.23975
≥1 USD $134.23975
≥10 USD $129.76525
≥100 USD $116.3408
Inventory: 297
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 177-LFBGA
Number of Pins 177
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Published 2006
Series NET+ARM?
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 177
Applications Network Processor
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Voltage - Supply 1.4V~3.6V
Terminal Position BOTTOM
Terminal Form BALL
Terminal Pitch 0.8mm
Operating Supply Voltage 1.5V
Power Supplies 1.53.3V
Interface EBI/EMI, Ethernet, DMA, SPI, UART
Number of I/O 16
RAM Size External
Memory Type External Program Memory
Core Processor ARM7?
Program Memory Type External Program Memory
Data Bus Width 32b
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Core Architecture ARM
Max Frequency 55MHz
Max I/O Voltage 3.6V
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
