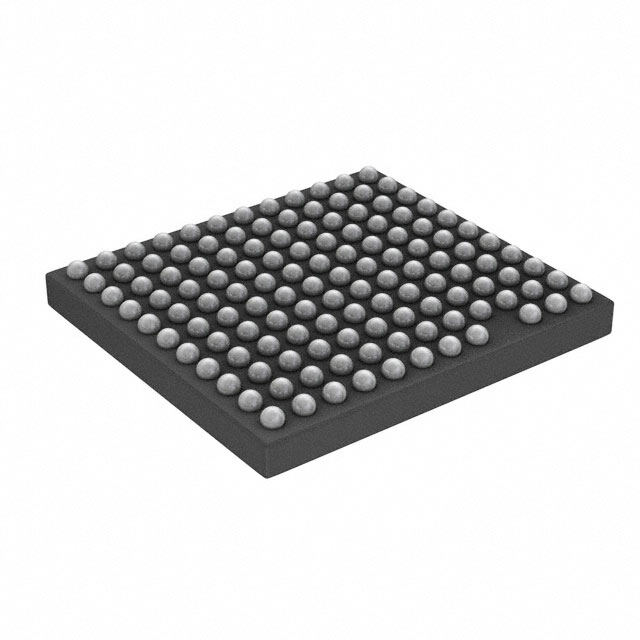

CYUSB3014-FBXIT
RoHS
RoHS compliant
RoHS compliantPackage 131-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description
IC USB CTLR
PDF
/
Inventory: 4760
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Surface Mount
Package / Case 131-UFBGA, WLCSP
Surface Mount YES
Number of Pins 131
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2011
Series EZ-USB FX3?
JESD-609 Code e3/e1
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 131
ECCN Code 3A991.A.3
Terminal Finish PURE TIN/TIN SILVER COPPER
Applications SuperSpeed USB Peripheral Controller
HTS Code 8542.31.00.01
Subcategory Bus Controllers
Technology CMOS
Voltage - Supply 1.15V~1.25V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.2V
Terminal Pitch 0.4mm
Pin Count 131
Power Supplies 1.2V
Interface GPIF, I2C, I2S, SPI, UART, USB
Number of I/O 60
RAM Size 512K x 8
Memory Type External Program Memory
uPs/uCs/Peripheral ICs Type BUS CONTROLLER, UNIVERSAL SERIAL BUS
Core Processor ARM9?
Clock Frequency 19.2MHz
Program Memory Type External Program Memory
Supply Current-Max 200mA
Data Rate 5 Gbps
Core Architecture ARM
Bus Compatibility I2C
Data Transfer Rate-Max 375 MBps
Controller Series CYUSB
Dimensions
Height Seated (Max) 0.6mm
Length 5.099mm
Width 4.695mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
