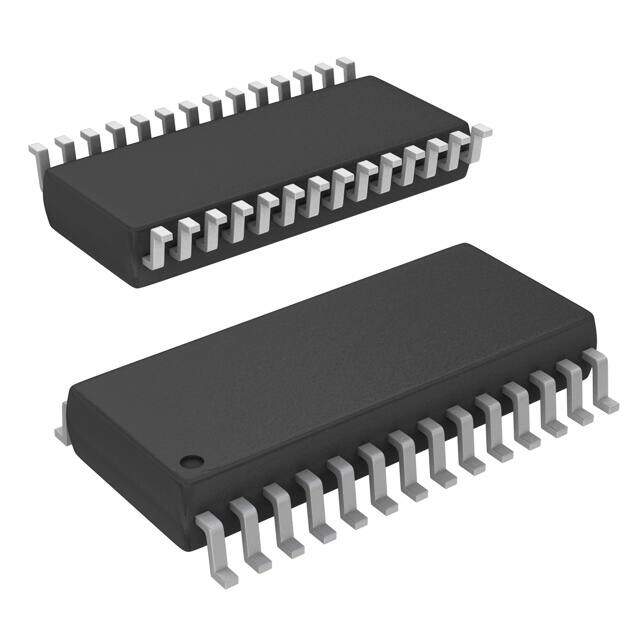

CY7C64013C-SXCT
RoHS
RoHS compliant
RoHS compliantPackage 28-SOIC (0.295, 7.50mm Width)
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description
IC MCU 8K FULL SPEED USB 28SOIC
PDF
/
Buying Options
Total Price: USD $4.06
Unit Price: USD $4.056625
≥1 USD $4.056625
≥10 USD $3.827007
≥100 USD $3.610389
≥500 USD $3.406025
≥1000 USD $3.213229
Inventory: 1592
Minimum: 1
-
+
Technical Details
Physical
Contact Plating Gold, Tin
Mounting Type Surface Mount
Package / Case 28-SOIC (0.295, 7.50mm Width)
Surface Mount YES
Number of Pins 28
Technical
Operating Temperature 0°C~70°C
Packaging Tape & Reel (TR)
Published 2004
Series M8?
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 28
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications USB Microcontroller
Subcategory Microcontrollers
Max Power Dissipation 500mW
Technology CMOS
Voltage - Supply 4V~5.25V
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 5V
Frequency 12MHz
Time@Peak Reflow Temperature-Max (s) 20
Base Part Number CY7C64013
Pin Count 28
Qualification Status Not Qualified
Operating Supply Voltage 5V
Power Supplies 5V
Interface I2C, USB, HAPI
Memory Size 8kB
Number of I/O 19
RAM Size 256 x 8
Memory Type EPROM, OTP
Core Processor M8C
Program Memory Type OTP (8kB)
Supply Current-Max 50mA
Bit Size 8
Watchdog Timer Yes
Access Time 48 μs
Has ADC NO
DMA Channels NO
Data Bus Width 8b
PWM Channels NO
DAC Channels NO
Number of Timers/Counters 1
ROM Programmability OTPROM
Controller Series CY7C640xx
Dimensions
Height Seated (Max) 2.67mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
