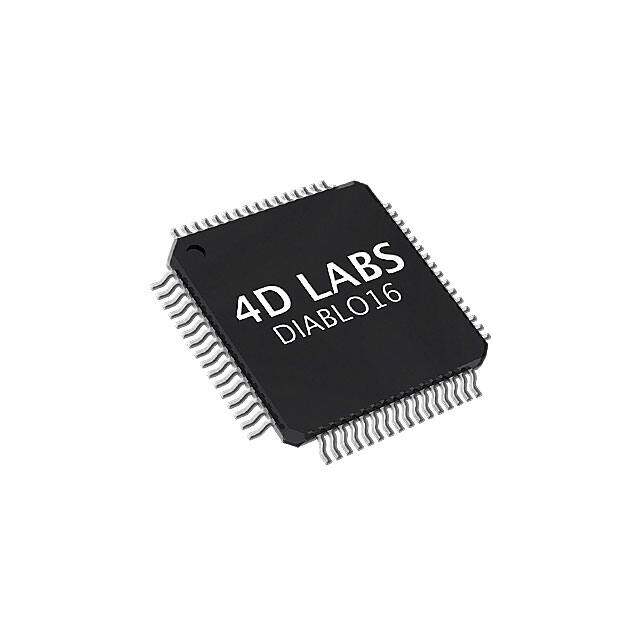

DIABLO16 image
Favorite
DIABLO16 image
Favorite
RoHS
RoHS RoHS compliant
Package 64-TQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers - Application Specific
Description Processors - Application Specialized Embedded Graphics Controller 16 bit
PDF
/
Inventory: 5828
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 10mm
Length 10mm
Height 1.05mm

Technical

Number of Programmable I/O 16
Max Frequency 70MHz
Density 256 kb
Number of Timers/Counters 8
Data Bus Width 16b
Program Memory Type FLASH (192kB)
Core Processor EVE
Memory Type FLASH
RAM Size 32K x 8
Nominal Supply Current 70mA
Number of I/O 16
Operating Supply Current 70mA
Memory Size 32kB
Min Supply Voltage 3V
Interface I2C, LCD, OLED, SD, SPI, TFT, TTL
Operating Supply Voltage 3.3V
Voltage - Supply 3V~3.6V
Applications Graphics Processor
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 2013
Packaging Tray
Operating Temperature -40°C~80°C

Physical

Supplier Device Package 64-TQFP (10x10)
Number of Pins 64
Package / Case 64-TQFP
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
