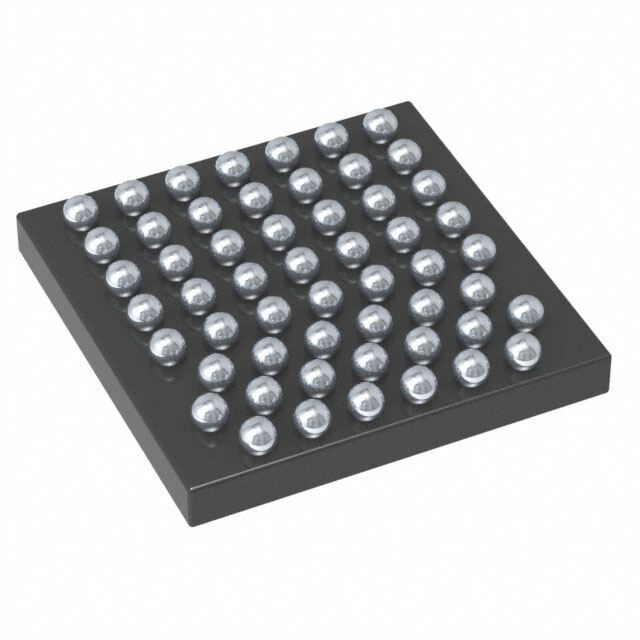

ADUCM3029BCBZ-RL
RoHS
RoHS compliant
RoHS compliantPackage 54-UFBGA, WLCSP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 256KB FLASH 54WLCSP
PDF
/
Buying Options
Total Price: USD $19.32
Unit Price: USD $19.322798
≥1 USD $19.322798
≥10 USD $18.229054
≥100 USD $17.197225
≥500 USD $16.223796
≥1000 USD $15.305467
Inventory: 1183
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2.76mm
Length 2.76mm
Height Seated (Max) 0.53mm
Technical
Number of UART Channels 1
On Chip Program ROM Width 8
DAC Channels NO
PWM Channels YES
DMA Channels YES
Has ADC YES
Data Converter A/D 8x12b
Bit Size 32
Connectivity I2C, SPI, UART/USART
Program Memory Size 256KB 256K x 8
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, POR, PWM, WDT
Core Processor ARM? Cortex?-M3
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 1.74V~3.6V
RAM Size 96K x 8
Speed 26MHz
Number of I/O 36
Oscillator Type Internal
Supply Voltage-Max (Vsup) 3.6V
Pin Count 54
Base Part Number ADUCM3029
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.35mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Number of Terminations 54
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code no
Series ADuCM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 54
Surface Mount YES
Package / Case 54-UFBGA, WLCSP
Mounting Type Surface Mount
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 8 Weeks
