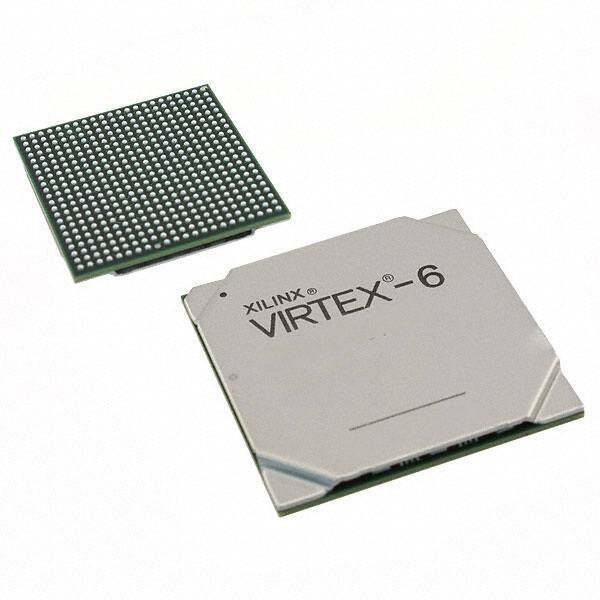

XC6VLX760-L1FF1760I
RoHS
/
Package FCBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
CMOS INDUSTRIAL 2008 RoHS Compliant field programmable gate array 100C 3.2MB 5.87ns 1098MHz
PDF
/
Inventory: 6628
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 42.5mm
Length 42.5mm
Height Seated (Max) 3.5mm
Technical
Combinatorial Delay of a CLB-Max 5.87 ns
Number of Logic Blocks (LABs) 59280
Number of Logic Elements/Cells 758784
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency 1098MHz
RAM Size 3.2MB
Number of I/O 1200
Temperature Grade INDUSTRIAL
Power Supplies 11.2/2.5V
Supply Voltage-Max (Vsup) 0.93V
Operating Supply Voltage 1V
Qualification Status Not Qualified
JESD-30 Code S-PBGA-B1760
Pin Count 1760
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1mm
Supply Voltage 0.9V
Peak Reflow Temperature (Cel) 225
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code 3A001.A.7.A
Number of Terminations 1760
Moisture Sensitivity Level (MSL) 4
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2008
Physical
Package / Case FCBGA
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
