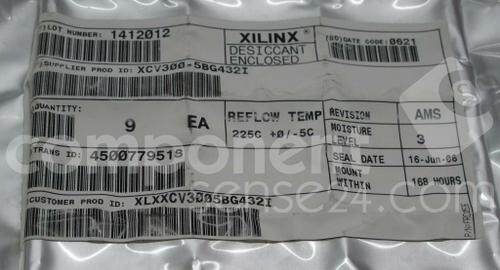

XCV300-5BG432I
RoHS
/
Package 432-LBGA Exposed Pad, Metal
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Virtex? XCV300 432-LBGA Exposed Pad Metal Tin/Lead (Sn63Pb37) field programmable gate array 1.7mm 2.5V 294MHz 0.7ns
PDF
/
Buying Options
Total Price: USD $199.64
Unit Price: USD $199.63775
≥1 USD $199.63775
≥10 USD $178.9857
Inventory: 12
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 40mm
Length 40mm
Height Seated (Max) 1.7mm
Technical
Combinatorial Delay of a CLB-Max 0.7 ns
Speed Grade 5
Number of LABs/CLBs 1536
Number of Gates 322970
Total RAM Bits 65536
Number of Logic Elements/Cells 6912
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Inputs 316
Clock Frequency 294MHz
RAM Size 8kB
Number of I/O 316
Operating Supply Voltage 2.5V
Qualification Status Not Qualified
Number of Outputs 316
JESD-30 Code S-PBGA-B432
Pin Count 432
Base Part Number XCV300
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Terminal Pitch 1.27mm
Supply Voltage 2.5V
Peak Reflow Temperature (Cel) 225
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.375V~2.625V
Technology CMOS
Subcategory Field Programmable Gate Arrays
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Number of Terminations 432
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Series Virtex?
Published 2010
Packaging Tray
Operating Temperature -40°C~100°C TJ
Physical
Package / Case 432-LBGA Exposed Pad, Metal
Mounting Type Surface Mount
Mount Surface Mount
