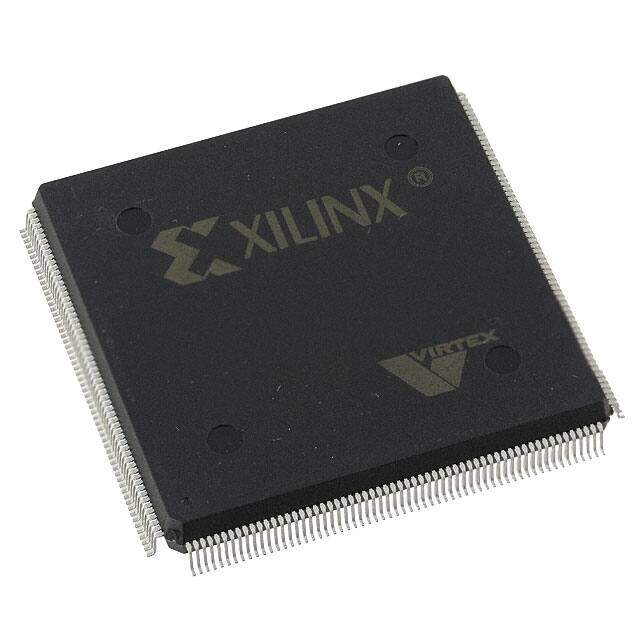

XCV200E-8PQ240C
RoHS
/
Package 240-BFQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Virtex?-E XCV200E 240-BFQFP Surface Mount field programmable gate array 4.1mm 1.8V 416MHz 0.4ns
PDF
/
Buying Options
Total Price: USD $2.68
Unit Price: USD $2.6828
≥1 USD $2.6828
≥10 USD $2.20115
≥100 USD $2.13275
≥500 USD $2.0634
≥1000 USD $1.995
Inventory: 973
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 240-BFQFP
Number of Pins 240
Technical
Operating Temperature 0°C~85°C TJ
Packaging Tray
Published 2004
Series Virtex?-E
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 240
ECCN Code EAR99
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.71V~1.89V
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 225
Supply Voltage 1.8V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number XCV200E
Pin Count 240
Number of Outputs 158
Operating Supply Voltage 1.8V
Number of I/O 158
RAM Size 14kB
Clock Frequency 416MHz
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 5292
Total RAM Bits 114688
Number of Gates 306393
Number of LABs/CLBs 1176
Speed Grade 8
Combinatorial Delay of a CLB-Max 0.4 ns
Number of Equivalent Gates 63504
Dimensions
Height Seated (Max) 4.1mm
Length 32mm
Width 32mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
