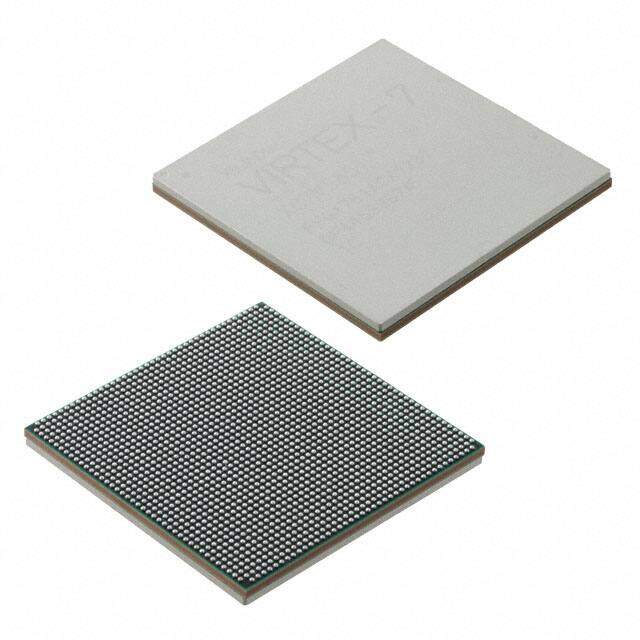

XC7VX690T-2FFG1761C
RoHS
RoHS compliant
RoHS compliantPackage 1760-BBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Virtex?-7XT XC7VX690T 1760-BBGA FCBGA Tin/Silver/Copper (Sn/Ag/Cu) field programmable gate array 3.5mm 11.8V 1818MHz 100ps
PDF
/
Buying Options
Total Price: USD $1342.39
Unit Price: USD $1342.3918
≥1 USD $1342.3918
Inventory: 65
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Copper, Silver, Tin
Mounting Type Surface Mount
Package / Case 1760-BBGA, FCBGA
Surface Mount YES
Technical
Operating Temperature 0°C~85°C TJ
Packaging Box
Published 2010
Series Virtex?-7 XT
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 1761
ECCN Code 3A001.A.7.A
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 0.97V~1.03V
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1V
Terminal Pitch 1mm
Base Part Number XC7VX690T
Pin Count 1761
JESD-30 Code S-PBGA-B1761
Number of Outputs 850
Power Supplies 11.8V
Number of I/O 850
RAM Size 6.5MB
Clock Frequency 1818MHz
Propagation Delay 100 ps
Turn On Delay Time 100 ps
Number of Inputs 850
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 693120
Total RAM Bits 54190080
Number of LABs/CLBs 54150
Speed Grade -2
Number of Registers 866400
Combinatorial Delay of a CLB-Max 0.61 ns
Dimensions
Height Seated (Max) 3.5mm
Length 42.5mm
Width 42.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
