XC5VSX95T-3FF1136C
RoHS
/

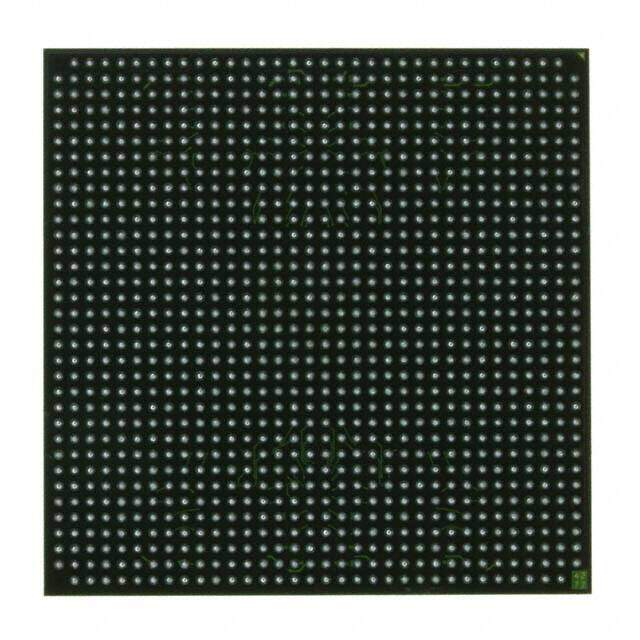

Package 1136-BBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Virtex?-5SXT XC5VSX95T 1136-BBGA FCBGA Tin/Lead (Sn63Pb37) field programmable gate array 3.4mm 12.5V 550MHz 1.1MB
PDF
/
Inventory: 7343
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 35mm
Length 35mm
Height Seated (Max) 3.4mm
Technical
Number of LABs/CLBs 7360
Total RAM Bits 8994816
Number of Logic Elements/Cells 94208
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Inputs 640
Clock Frequency 550MHz
RAM Size 1.1MB
Number of I/O 640
Power Supplies 12.5V
Qualification Status Not Qualified
Number of Outputs 640
JESD-30 Code S-PBGA-B1136
Base Part Number XC5VSX95T
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Terminal Pitch 1mm
Supply Voltage 1V
Peak Reflow Temperature (Cel) 225
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 0.95V~1.05V
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code 3A001.A.7.A
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Obsolete
JESD-609 Code e0
Series Virtex?-5 SXT
Published 1999
Packaging Tray
Operating Temperature 0°C~85°C TJ
Physical
Surface Mount YES
Package / Case 1136-BBGA, FCBGA
Mounting Type Surface Mount
