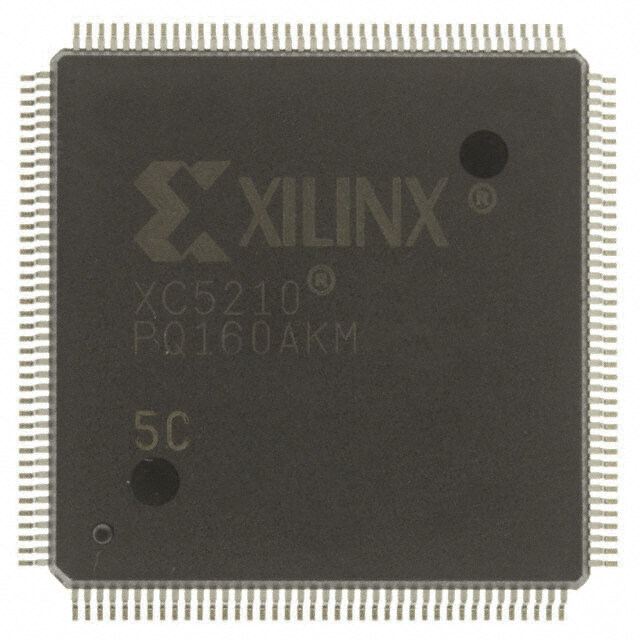

XC5210-5PQ160C
RoHS
/
Package 160-BQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
XC5200 XC5210 160-BQFP Tin/Lead (Sn85Pb15) field programmable gate array 4.1mm 5V 83MHz 4.6ns
PDF
/
Inventory: 4947
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 28mm
Length 28mm
Height Seated (Max) 4.1mm
Technical
Number of Equivalent Gates 10000
Number of Logic Cells 324
Number of CLBs 324
Combinatorial Delay of a CLB-Max 4.6 ns
Number of LABs/CLBs 324
Number of Gates 16000
Number of Logic Elements/Cells 1296
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency 83MHz
Number of I/O 133
Power Supplies 5V
Qualification Status Not Qualified
Number of Outputs 196
Pin Count 160
Base Part Number XC5210
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Terminal Pitch 0.65mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 225
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 4.75V~5.25V
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Terminal Finish Tin/Lead (Sn85Pb15)
Number of Terminations 160
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Series XC5200
Published 1999
Packaging Tray
Operating Temperature 0°C~85°C TJ
Physical
Number of Pins 160
Package / Case 160-BQFP
Mounting Type Surface Mount
Mount Surface Mount
