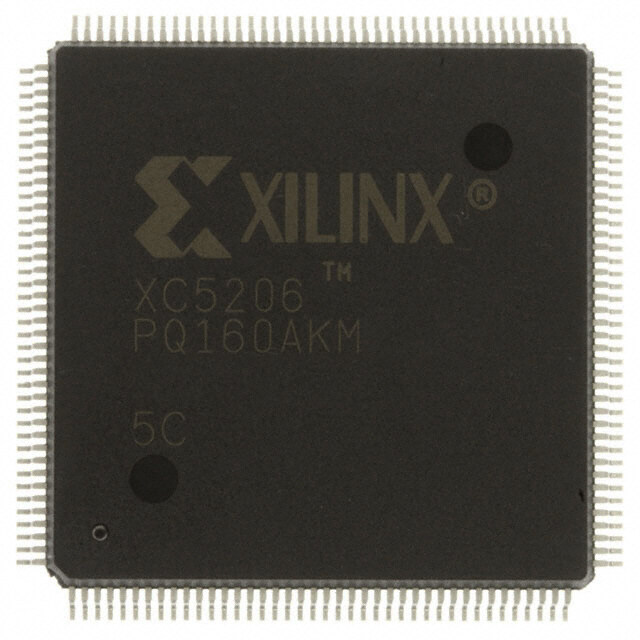

XC5206-5PQ160C
RoHS
/
Package 160-BQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Contains Lead CMOS 1999 Non-RoHS Compliant FPGA 0C~85C TJ 4.6ns 83MHz 5V
PDF
/
Buying Options
Total Price: USD $32.4
Unit Price: USD $32.39785
≥1 USD $32.39785
≥10 USD $26.5829
≥100 USD $25.7526
≥500 USD $24.92135
≥1000 USD $24.09105
Inventory: 1368
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 28mm
Length 28mm
Height Seated (Max) 4.1mm
Technical
Number of Equivalent Gates 6000
Number of Logic Cells 784
Number of CLBs 196
Combinatorial Delay of a CLB-Max 4.6 ns
Number of LABs/CLBs 196
Number of Gates 10000
Number of Logic Elements/Cells 784
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency 83MHz
Number of I/O 133
Power Supplies 5V
Qualification Status Not Qualified
Number of Outputs 133
Pin Count 160
Base Part Number XC5206
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Terminal Pitch 0.65mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 225
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 4.75V~5.25V
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Terminal Finish Tin/Lead (Sn85Pb15)
Number of Terminations 160
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Series XC5200
Published 1999
Packaging Tray
Operating Temperature 0°C~85°C TJ
Physical
Number of Pins 160
Package / Case 160-BQFP
Mounting Type Surface Mount
Mount Surface Mount
