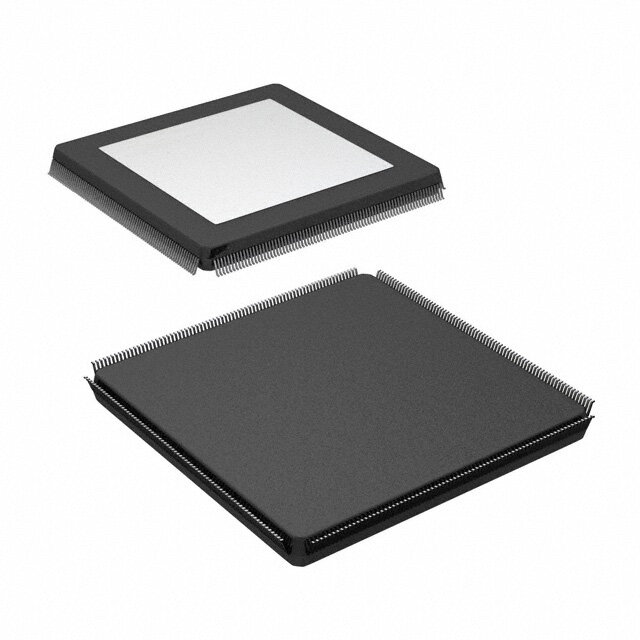

XC4044XL-2HQ304C
RoHS
/
Package 304-BFQFP Exposed Pad
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
XC4000E/X XC4044XL 304-BFQFP Exposed Pad Tin/Lead (Sn85Pb15) field programmable gate array 4.5mm 3.3V 179MHz 1.5ns
PDF
/
Inventory: 2245
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 304-BFQFP Exposed Pad
Number of Pins 304
Technical
Operating Temperature 0°C~85°C TJ
Packaging Tray
Published 1999
Series XC4000E/X
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 304
Terminal Finish Tin/Lead (Sn85Pb15)
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 3V~3.6V
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 225
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number XC4044XL
Pin Count 304
Number of Outputs 320
Operating Supply Voltage 3.3V
Number of I/O 256
RAM Size 6.3kB
Clock Frequency 179MHz
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 3800
Total RAM Bits 51200
Number of Gates 44000
Number of LABs/CLBs 1600
Speed Grade 2
Number of Registers 3840
Combinatorial Delay of a CLB-Max 1.5 ns
Dimensions
Height Seated (Max) 4.5mm
Length 40mm
Width 40mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
