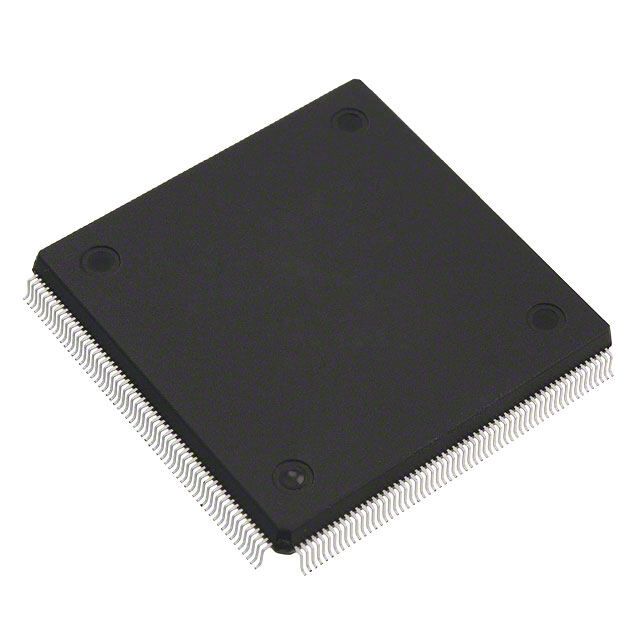

XC4013-6PQ240C
RoHS
/
Package 240-BFQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
XC4000 XC4013 240-BFQFP Tin/Lead (Sn85Pb15) field programmable gate array 3.75mm 5V 90.9MHz 6ns
PDF
/
Inventory: 4379
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 240-BFQFP
Number of Pins 240
Technical
Operating Temperature 0°C~85°C TJ
Packaging Tray
Published 1995
Series XC4000
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 240
Terminal Finish Tin/Lead (Sn85Pb15)
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 4.75V~5.25V
Terminal Position QUAD
Terminal Form GULL WING
Supply Voltage 5V
Terminal Pitch 0.5mm
Reach Compliance Code unknown
Base Part Number XC4013
Pin Count 240
Number of Outputs 192
Qualification Status Not Qualified
Power Supplies 5V
Number of I/O 192
RAM Size 2.3kB
Clock Frequency 90.9MHz
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 1368
Total RAM Bits 18432
Number of Gates 13000
Number of LABs/CLBs 576
Combinatorial Delay of a CLB-Max 6 ns
Number of CLBs 576
Number of Logic Cells 576
Number of Equivalent Gates 10000
Dimensions
Height Seated (Max) 3.75mm
Length 32mm
Width 32mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
