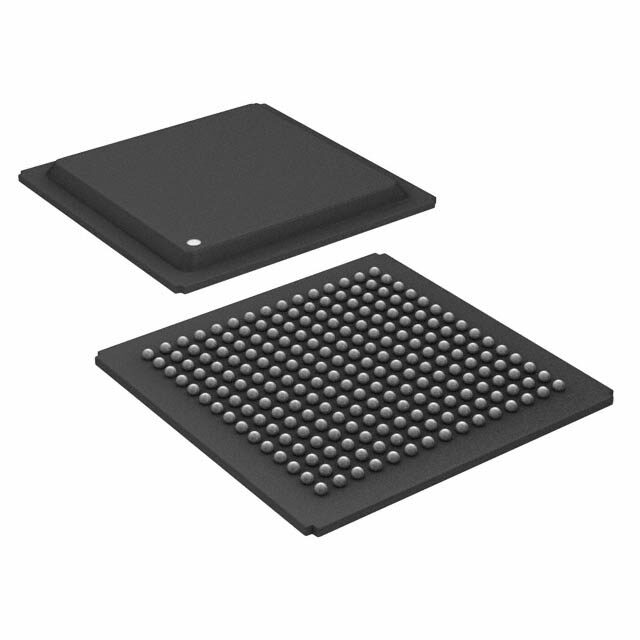

XC4010E-2BG225I
RoHS
/
Package 225-BBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
XC4000E/X XC4010E 225-BBGA Tin/Lead (Sn63Pb37) field programmable gate array 2.55mm 5V 125MHz 1.6ns
PDF
/
Inventory: 7110
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 225-BBGA
Number of Pins 225
Technical
Operating Temperature -40°C~100°C TJ
Packaging Tray
Published 1999
Series XC4000E/X
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 225
Terminal Finish Tin/Lead (Sn63Pb37)
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 4.5V~5.5V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 225
Supply Voltage 5V
Terminal Pitch 1.5mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number XC4010E
Pin Count 225
Number of Outputs 160
Qualification Status Not Qualified
Power Supplies 5V
Number of I/O 160
RAM Size 1.6kB
Clock Frequency 125MHz
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 950
Total RAM Bits 12800
Number of Gates 10000
Number of LABs/CLBs 400
Combinatorial Delay of a CLB-Max 1.6 ns
Number of CLBs 400
Number of Logic Cells 400
Number of Equivalent Gates 7000
Dimensions
Height Seated (Max) 2.55mm
Length 27mm
Width 27mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
