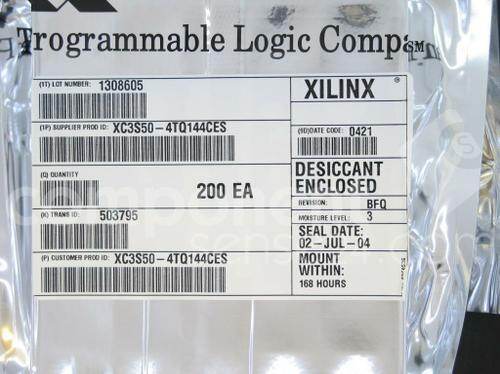

XC3S50-4TQ144C
RoHS
/
Package 144-LQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Spartan?-3 144-LQFP Tin/Lead (Sn85Pb15) Surface Mount field programmable gate array 1.6mm 1.2V 630MHz 0.61ns
PDF
/
Buying Options
Total Price: USD $32.86
Unit Price: USD $32.855323
≥1 USD $32.855323
≥200 USD $12.715437
≥500 USD $12.267738
≥1000 USD $12.04717
Inventory: 1520
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 144-LQFP
Surface Mount YES
Number of Pins 144
Technical
Operating Temperature 0°C~85°C TJ
Packaging Bulk
Published 2009
Series Spartan?-3
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 144
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn85Pb15)
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.14V~1.26V
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 225
Supply Voltage 1.2V
Terminal Pitch 0.5mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 144
Number of Outputs 97
Qualification Status Not Qualified
Operating Supply Voltage 1.2V
Power Supplies 1.21.2/3.32.5V
Number of I/O 97
RAM Size 9kB
Clock Frequency 630MHz
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 1728
Total RAM Bits 73728
Number of Gates 50000
Number of LABs/CLBs 192
Speed Grade 4
Combinatorial Delay of a CLB-Max 0.61 ns
Number of CLBs 192
Dimensions
Height Seated (Max) 1.6mm
Length 20mm
Width 20mm
Compliance
RoHS Status Non-RoHS Compliant
