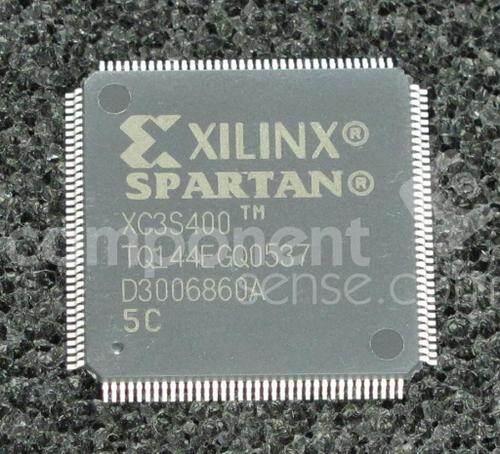

XC3S400-5TQ144C
RoHS
/
Package 144-LQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Spartan?-3 144-LQFP Surface Mount FIELD PROGRAMMABLE GATE ARRAY field programmable gate array 1.6mm 1.2V 36kB 0C~85C TJ
PDF
/
Inventory: 1603
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 20mm
Length 20mm
Height Seated (Max) 1.6mm
Technical
Number of CLBs 896
Speed Grade 5
Number of LABs/CLBs 896
Number of Gates 400000
Total RAM Bits 294912
Number of Logic Elements/Cells 8064
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
RAM Size 36kB
Number of I/O 97
Operating Supply Voltage 1.2V
Qualification Status Not Qualified
Number of Outputs 97
Pin Count 144
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 225
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 1.14V~1.26V
Technology CMOS
Subcategory Field Programmable Gate Arrays
ECCN Code EAR99
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Spartan?-3
Published 2009
Packaging Bulk
Operating Temperature 0°C~85°C TJ
Physical
Number of Pins 144
Surface Mount YES
Package / Case 144-LQFP
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
