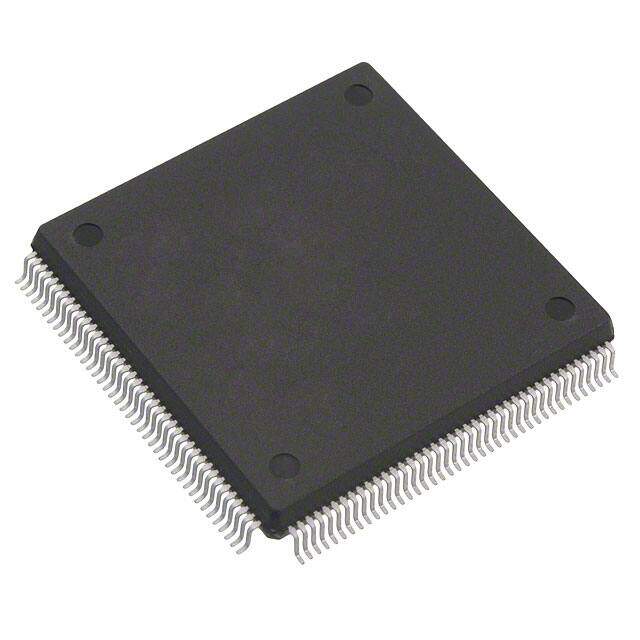

XC3195A-09PQ160C image
Favorite
XC3195A-09PQ160C image
Favorite

XC3195A-09PQ160C

Xilinx Inc.
RoHS
/
Package 160-BQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description XC3000A/L XC3195 160-BQFP Tin/Lead (Sn85Pb15) field programmable gate array 4.1mm 5V 370MHz 1.5ns
PDF
/
Inventory: 7867
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mounting Type Surface Mount
Package / Case 160-BQFP
Surface Mount YES

Technical

Operating Temperature 0°C~85°C TJ
Packaging Tray
Published 1999
Series XC3000A/L
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 160
Terminal Finish Tin/Lead (Sn85Pb15)
HTS Code 8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 4.25V~5.25V
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 225
Supply Voltage 5V
Terminal Pitch 0.65mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number XC3195
Pin Count 160
JESD-30 Code S-PQFP-G160
Number of Outputs 138
Qualification Status Not Qualified
Power Supplies 5V
Number of I/O 138
Clock Frequency 370MHz
Number of Inputs 138
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Total RAM Bits 94984
Number of Gates 7500
Number of LABs/CLBs 484
Combinatorial Delay of a CLB-Max 1.5 ns
Number of CLBs 484
Number of Logic Cells 484
Number of Equivalent Gates 6500

Dimensions

Height Seated (Max) 4.1mm
Length 28mm
Width 28mm

Compliance

RoHS Status Non-RoHS Compliant
