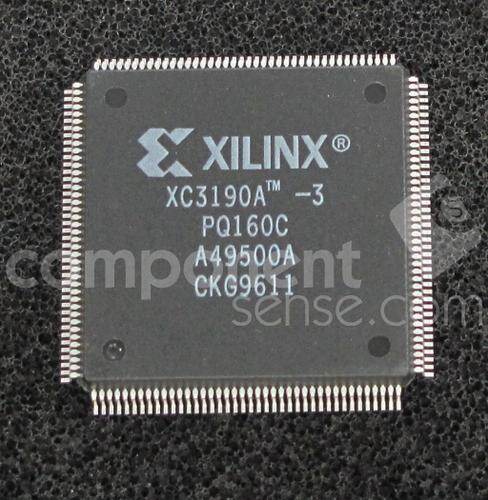

XC3190A-3PQ160C
RoHS
/
Package 160-BQFP
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
XC3000A/L XC3190 160-BQFP Tin/Lead (Sn85Pb15) field programmable gate array 4.1mm 5V 270MHz 2.7ns
PDF
/
Buying Options
Total Price: USD $23.34
Unit Price: USD $23.33675
≥1 USD $23.33675
≥10 USD $19.1482
≥100 USD $18.5497
≥500 USD $17.9512
≥1000 USD $17.3527
Inventory: 5509
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 28mm
Length 28mm
Height Seated (Max) 4.1mm
Technical
Number of Equivalent Gates 5000
Number of Logic Cells 320
Number of CLBs 320
Combinatorial Delay of a CLB-Max 2.7 ns
Number of LABs/CLBs 320
Number of Gates 6000
Total RAM Bits 64160
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Inputs 138
Clock Frequency 270MHz
Number of I/O 138
Power Supplies 5V
Qualification Status Not Qualified
Number of Outputs 138
JESD-30 Code S-PQFP-G160
Pin Count 160
Base Part Number XC3190
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Terminal Pitch 0.65mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 225
Terminal Form GULL WING
Terminal Position QUAD
Voltage - Supply 4.25V~5.25V
Technology CMOS
Subcategory Field Programmable Gate Arrays
HTS Code 8542.39.00.01
Terminal Finish Tin/Lead (Sn85Pb15)
Number of Terminations 160
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Series XC3000A/L
Published 1999
Packaging Tray
Operating Temperature 0°C~85°C TJ
Physical
Surface Mount YES
Package / Case 160-BQFP
Mounting Type Surface Mount
