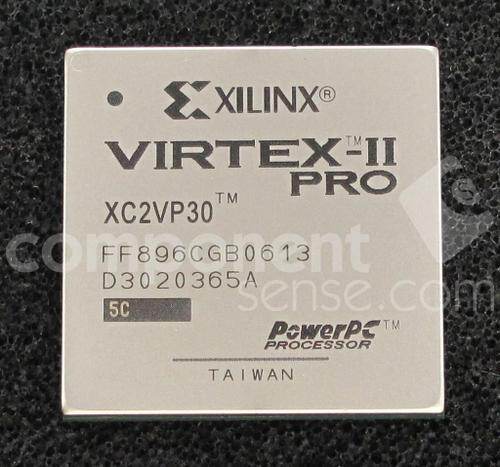

XC2VP30-5FF896C
RoHS
/
Package 896-BBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
Virtex?-II Pro 896-BBGA FCBGA Tin/Lead (Sn63Pb37) Surface Mount field programmable gate array 3.4mm 1.5V 0.36ns 306kB
PDF
/
Inventory: 1341
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 896-BBGA, FCBGA
Surface Mount YES
Technical
Operating Temperature 0°C~85°C TJ
Packaging Bulk
Published 2011
Series Virtex?-II Pro
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 896
ECCN Code 3A991.D
Terminal Finish Tin/Lead (Sn63Pb37)
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.425V~1.575V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 225
Supply Voltage 1.5V
Terminal Pitch 1mm
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 896
JESD-30 Code S-PBGA-B896
Number of Outputs 556
Qualification Status Not Qualified
Operating Supply Voltage 1.5V
Number of I/O 556
RAM Size 306kB
Number of Inputs 556
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 30816
Total RAM Bits 2506752
Number of LABs/CLBs 3424
Speed Grade 5
Number of Registers 27392
Combinatorial Delay of a CLB-Max 0.36 ns
Dimensions
Height Seated (Max) 3.4mm
Length 31mm
Width 31mm
Compliance
RoHS Status Non-RoHS Compliant
