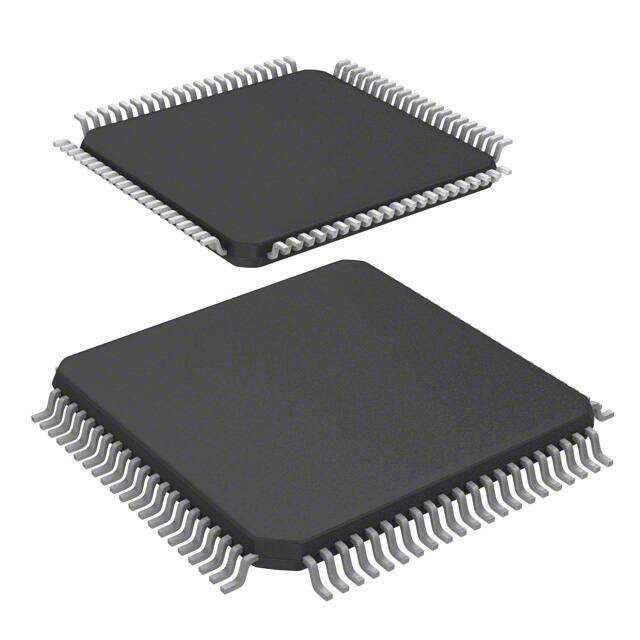

A54SX32A-CQ84B
RoHS
/
Package 84-CQFP Exposed Pad and Tie Bar
Category Integrated Circuits (ICs) / Embedded - FPGAs (Field Programmable Gate Array)
Description
SX-A A54SX32A 84-CQFP Exposed Pad and Tie Bar Tin/Lead (Sn/Pb) field programmable gate array 2.4mm 2.5V 238MHz 1.2ns
PDF
/
Buying Options
Total Price: USD $5548.28
Unit Price: USD $5548.28405
≥1 USD $5548.28405
Inventory: 32
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 84-CQFP Exposed Pad and Tie Bar
Number of Pins 84
Technical
Operating Temperature -55°C~125°C TJ
Packaging Tray
Series SX-A
JESD-609 Code e0
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 84
ECCN Code 3A001.A.2.C
Terminal Finish Tin/Lead (Sn/Pb)
Additional Feature IT CAN ALSO OPERATE WITH 3.3V AND 5V
HTS Code 8542.39.00.01
Technology CMOS
Voltage - Supply 2.25V~5.25V
Terminal Position QUAD
Terminal Form FLAT
Peak Reflow Temperature (Cel) 225
Supply Voltage 2.5V
Terminal Pitch 0.635mm
Time@Peak Reflow Temperature-Max (s) 20
Base Part Number A54SX32A
Operating Supply Voltage 2.5V
Number of I/O 69
Propagation Delay 1.2 ns
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Number of Gates 48000
Max Frequency 238MHz
Number of LABs/CLBs 2880
Screening Level MIL-STD-883 Class B
Number of Registers 1980
Combinatorial Delay of a CLB-Max 1.4 ns
Number of CLBs 1800
Dimensions
Height Seated (Max) 2.4mm
Length 16.51mm
Width 16.51mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
